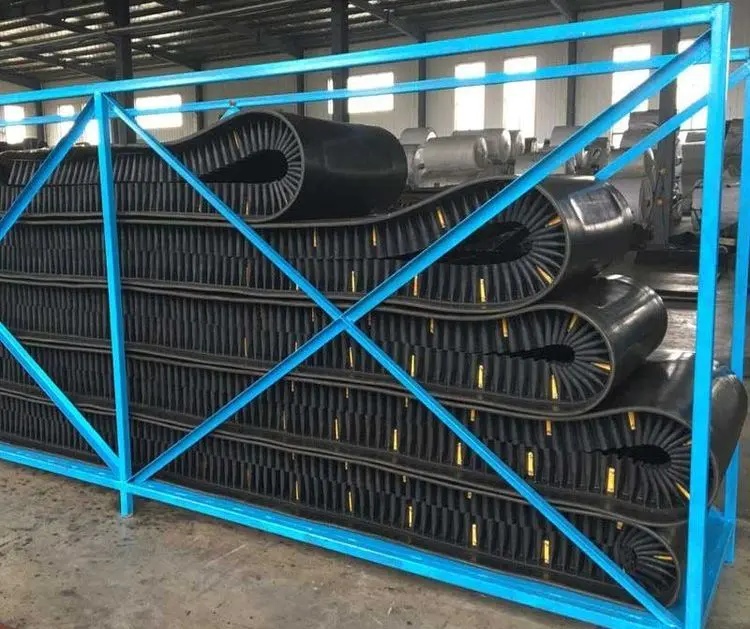

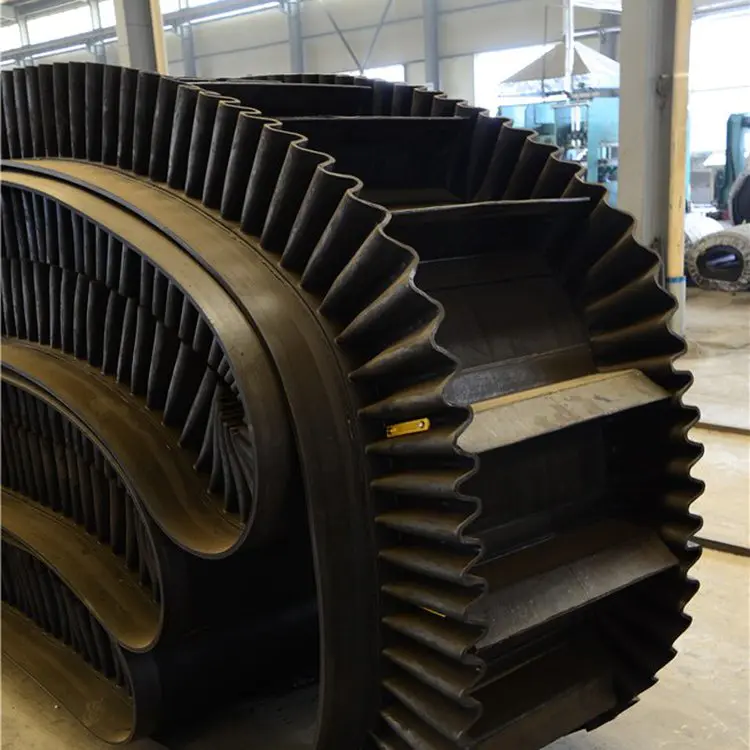

Corrugated Sidewall Conveyor Belt is a high-performance conveying equipment specially designed for large-angle material transportation, with an inclination angle ranging from 0° to 90°. It effectively addresses the limitations of traditional conveying equipment in steep-angle transportation. Through the unique design of sidewalls and partitions, it ensures the stability and efficiency of material transportation on steep gradients. As a professional conveyor equipment manufacturer, Zoomry Heavy Industry not only provides high-quality corrugated sidewall conveyor belts but also offers one-stop bulk material transportation solutions to help clients tackle various complex working conditions.
Due to its unique design and excellent performance, the corrugated sidewall conveyor belt has a wide range of applications, covering almost all fields requiring bulk material transportation, whether for horizontal or vertical conveying. It is an essential piece of equipment in modern production lines:
● Ceramic Industry: Used for transporting raw materials such as mineral powders, quartz sand, and clay.
● Construction Industry: Performs excellently in the transportation of cement and aggregate, especially in concrete production lines and construction sites for short-distance or vertical conveying.
● Ports and Docks: Suitable for unloading ships, efficiently transporting bulk materials such as grains, ores, or coal to storage silos or other handling equipment.
● Metallurgical Industry: Transports ores, steelmaking raw materials, etc., meeting high load transportation requirements.
● Mining Industry: Ideal for steep-angle transport in mining sites, efficiently moving coal, metal ores, gravel, and other materials.
● Power Industry: Used for transporting coal and fly ash in thermal power plants, ensuring a continuous supply of fuel.
● Casting Industry: Transports waste, sand molds, and casting materials, improving production line efficiency.
● Food Industry: Especially for transporting bulk grains or powdered foodstuffs, ensuring efficient conveying and food hygiene safety.
● Agriculture: Used for transporting grains, seeds, and feed, enhancing logistics efficiency in agriculture.
● Chemical Industry: Transports various chemicals, such as granules or powders, to meet the diverse needs of the chemical production process.
● Recycling Industry: Transports recyclable materials like plastic pellets, scrap metals, and paper, helping businesses achieve environmental goals.

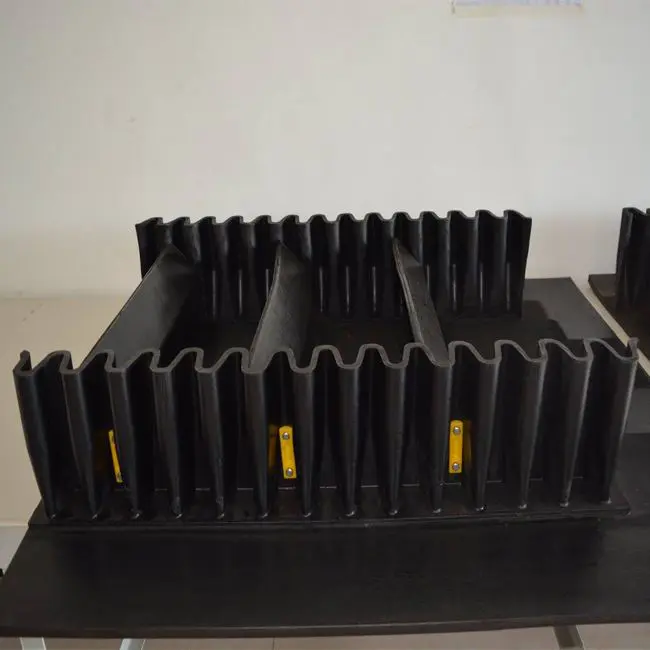

The unique sidewall and partition design of the belt allows for stable conveying of materials at inclinations from 0° to 90°, significantly expanding the application range compared to traditional conveyors.
The conveyor is efficient in transporting powders, granules, or bulk materials, especially for conveying materials that are difficult to flow or prone to spilling.
The tight coordination of the sidewalls and partitions ensures almost no spillage during transportation, guaranteeing high throughput and a clean work environment.
The conveyor belt has good rigidity, which resists deformation under compression, ensuring long-term stable and safe operation.
Made with high-quality materials and advanced manufacturing processes, it has excellent tear resistance and wear resistance, capable of withstanding harsh working environments.
It can operate at temperatures up to 190°C continuously, with peak temperatures reaching 200°C, suitable for transporting cement clinker, slag, and hot materials.
Certain models are flame-retardant, meeting both the EN 12882 standard for above-ground use and the EN 14973 standard for underground use, widely used in high-safety environments.
The high durability of the corrugated sidewall conveyor belt ensures stable performance over its lifespan and significantly reduces maintenance frequency and costs.
The belt can adapt to different working conditions and environments, with customizable materials and designs to improve overall performance.
Zoomry Heavy Industry offers a variety of models and specifications for the corrugated sidewall conveyor belt based on customer needs and application scenarios, including the following main types:
Suitable for general material transport, meeting most common operational needs.
Made with special heat-resistant materials for transporting high-temperature materials such as clinker, hot fly ash, etc.
Equipped with a wear-resistant cover, ideal for transporting sharp, rough materials that cause high wear.
Designed with flame-retardant features for high-safety environments such as coal mines and other hazardous environments.
Made with food-grade materials that comply with hygiene standards, specially designed for the food industry.
Made with corrosion-resistant materials, ideal for the chemical industry and transporting acidic or alkaline materials.Customers can also choose specific materials, widths, and layers according to actual needs to meet special application requirements.
| Sidewall Type | Data(mm) | Min. Pulley Dia. (mm) |
| N | Height=80 | 200 |
| Width=44 | ||
| Base Width=50 | ||
| Pitch=42 | ||
| Height=100 | 250 | |
| Width=44 | ||
| Base Width=50 | ||
| Pitch=42 | ||
| S | Height=120 | 315 |
| Width=66 | ||
| Base Width=75 | ||
| Pitch=63 | ||
| Height=160 | 400 | |
| Width=66 | ||
| Base Width=75 | ||
| Pitch=63 | ||
| Height=200 | 500 | |
| Width=66 | ||
| Base Width=75 | ||
| Pitch=63 | ||
| Height=240 | 630 | |
| Width=66 | ||
| Base Width=75 | ||
| Pitch=63 | ||
| Height=280 | 700 | |
| Width=66 | ||
| Base Width=75 | ||
| Pitch=63 | ||
| Height=300 | 800 | |
| Width=66 | ||
| Base Width=75 | ||
| Pitch=63 | ||
| ES | Height=300 | 800 |
| Width=88 | ||
| Base Width=100 | ||
| Pitch=84 | ||
| Height=400 | 1000 | |
| Width=88 | ||
| Base Width=100 | ||
| Pitch=84 |
Zoomry Heavy Industry uses high-quality materials and precise manufacturing processes to ensure exceptional product performance and stable quality.
We offer full-service from design and production to after-sales support, helping customers achieve the best bulk material transportation solutions.
With modern production facilities and efficient logistics systems, Zoomry Heavy Industry can respond quickly to customer needs and ensure timely delivery.
With years of experience in the conveyor equipment industry, we serve customers across multiple industries globally and have accumulated rich technical and practical experience.
Whether it’s materials, specifications, or special features, we offer tailored solutions to meet a wide variety of complex working conditions.
