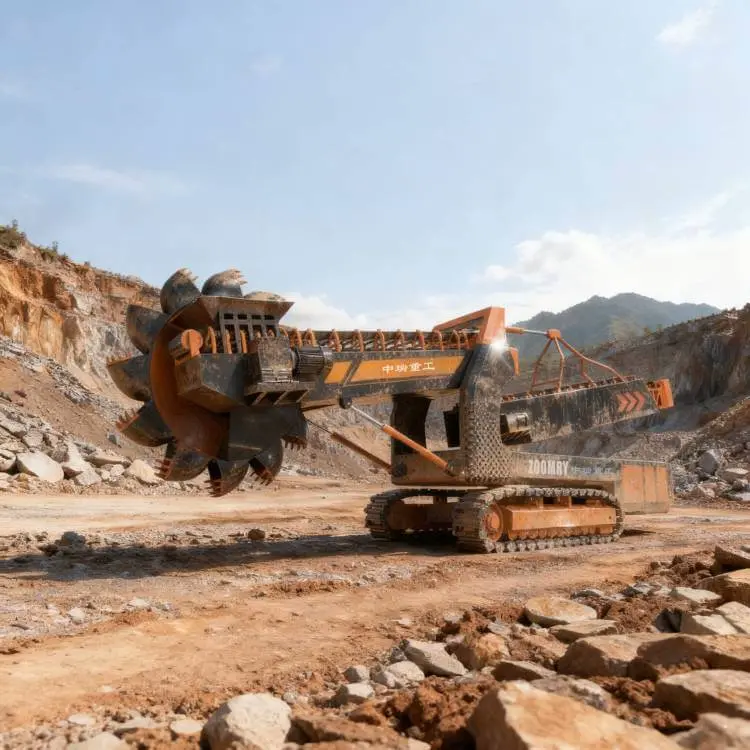

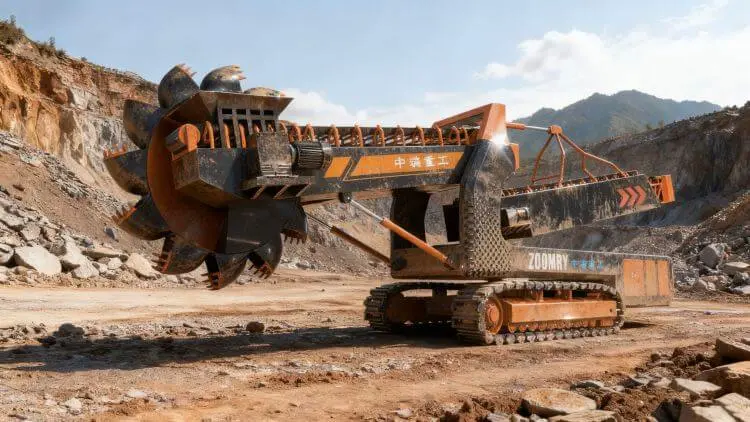

Bucket Wheel Reclaimer

ZOOMRY Bucket Wheel Reclaimer is the core equipment specially designed for global bulk material precise reclaiming scenarios. As a professional bulk material reclaiming equipment and mobile bucket wheel machine, its rated handling capacity covers 500-3000m³/h, equipped with 8-12 customized bucket wheels (diameter 5254-8200mm), bucket wheel drive power 75-1100Kw, combined with ±65-360° full-angle slewing mechanism, it can efficiently complete precise bulk material reclaiming operations in power plants, mines and other scenarios. The equipment is equipped with a low ground pressure crawler travel system (125-193KPa), adaptable to complex sites, and has passed CE and EAC international certifications, becoming the preferred solution in the fields of mining reclaimers and power plant bulk material handling for “precise reclaiming, flexible mobility, and stable operation”. It can also serve as a specialized reclaiming supplement for bucket wheel stacker-reclaimers, meeting the global industrial demand for efficient and precise bulk material reclaiming.

Core Functions of Bucket Wheel Reclaimer

The core competitiveness of ZOOMRY Bucket Wheel Reclaimer lies in “high reclaiming precision + wide operating range + strong site adaptability” — addressing the core pain points of power plants’ “precise control of boiler feed” and mines’ “layered reclaiming to avoid mixing”, through the coordinated optimization of the bucket wheel system, slewing mechanism and travel device, it solves the problems of traditional reclaiming equipment such as “large reclaiming deviation, narrow coverage, and difficult adaptation to complex sites”, while meeting global customers’ dual demands for “international compliance and long-term durability”.

Customized Bucket Wheel System

The bucket wheel system is the core execution unit for precise reclaiming. 8-12 bucket wheels are designed in an “equidistant circumferential distribution”, with a single bucket capacity of 0.25-0.71m³, flexibly configurable according to reclaiming scale: small and medium-sized stockyards in power plants (500-1500m³/h) are suitable for 8-10 bucket wheels, while large stockyards in mines (1500-3000m³/h) use 10-12 bucket wheels, combined with an adjustable speed of 5-6r/min, achieving “on-demand reclaiming”. The bucket wheel blades adopt an “arc-shaped bionic design”, different from traditional straight-edge blades, fitting the arc of the stockpile during material grabbing, with reclaiming deviation ≤2%, far below the industry average error of 5%, especially suitable for power plants’ precise requirements for coal feed quantity (avoiding boiler underfeeding or overfeeding). The blade material is 16mm thick Mn13 wear-resistant manganese steel, with a tungsten carbide alloy layer surfacing on the surface (thickness 3mm), improving wear resistance by 180% compared to ordinary carbon steel, capable of withstanding long-term impact from mine ore and power plant coal gangue; the inner side of the bucket wheel is equipped with an “anti-stick material deflector”, coated with polytetrafluoroethylene, with material residue rate ≤0.2%, reducing reclaiming quantity deviation caused by residue and lowering manual cleaning frequency. The bucket wheel drive system is equipped with a “precise torque control” function, monitoring grabbing resistance in real time through torque sensors; when encountering large lumps >500mm in diameter, it automatically reduces speed (minimum 2r/min) and triggers an audible and visual alarm, avoiding bucket wheel jamming or motor burnout, ensuring continuous precise reclaiming.

Full-Angle Slewing Mechanism

The slewing mechanism is key to expanding the reclaiming range. The bucket wheel reclaiming arm supports ±65-360° full-angle slewing, and the discharge arm can be adjusted ±90-±105° relative to the reclaiming arm, combined with 15m upward digging height and 1m downward digging height, covering a stockpile range of 80m in diameter. A single unit can complete dead-angle-free reclaiming from “stockpile edge-center” and “bottom-top” without frequent repositioning. The slewing drive adopts a “dual-motor synchronous control + planetary reducer” combination, with output torque up to 10000N·m and slewing precision ≤0.3°, ensuring reclaiming position deviation within 100mm, meeting power plants’ “fixed-point reclaiming (e.g., partitioned reclaiming of different coal types)” and mines’ “layered reclaiming (avoiding mixing of different grade ores)” precision requirements. The slewing bearing uses a “four-point contact ball bearing” (diameter 3-5m), with a load capacity of 1800kN, capable of simultaneously bearing axial load, radial load and overturning moment during reclaiming, with bearing clearance ≤0.1mm, maintaining slewing precision after long-term operation; the bearing surface adopts “nitriding + sealing” dual protection, improving dust and corrosion resistance by 60%, suitable for high-dust power plants and high-humidity mining environments, with a service life exceeding 60000 hours.

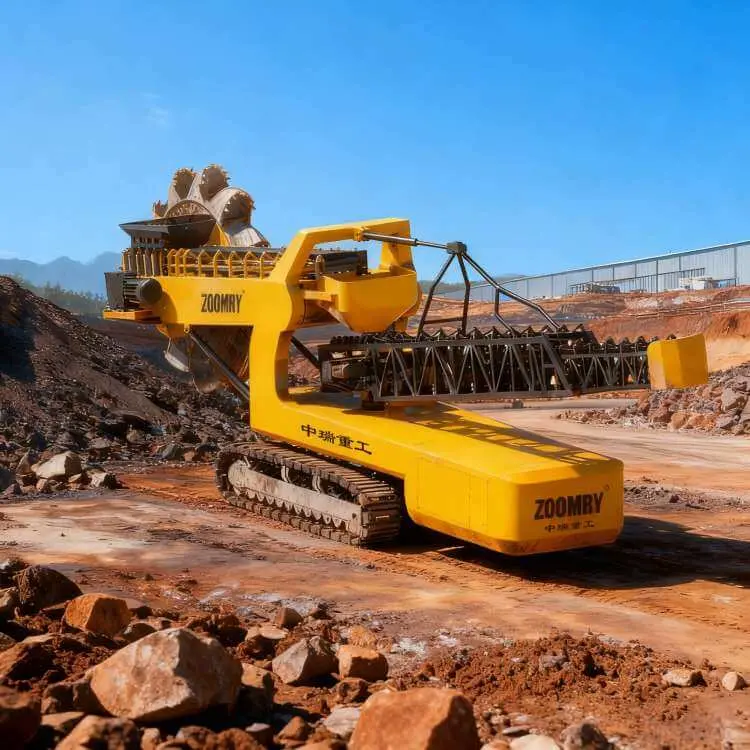

Low Ground Pressure Crawler Travel

The crawler travel system is designed for complex sites in power plants and mines. The crawler drive form can be “hydraulic motor + reducer” or “motor reducer”, with travel speeds divided into “operating mode (0.51Km/h)” and “transfer mode (0-2Km/h)”. Low-speed movement during operation ensures reclaiming precision, while high-speed repositioning during transfer improves efficiency. The track shoe width is 600mm, with ground pressure controlled at 125-193KPa, only half that of traditional wheeled reclaimers, evenly distributing weight on soft ground in power plant coal yards or mine slag accumulation areas, avoiding equipment entrapment and reducing crushing damage to buried pipelines (such as power plant coal conveying pipelines). The track tensioning system adopts “hydraulic automatic adjustment”, real-time monitoring of ground hardness through pressure sensors, automatically adjusting track tension: loosening the track on soft ground (tension 8-10kN) to increase contact area; tightening on hard ground (tension 12-15kN) to reduce track deviation, adapting to different site travel needs. In addition, the track drive wheel and guide wheel adopt “forged steel integral forming”, with tooth surface quenching hardness up to HRC60, extending wear resistance to over 12000 hours and reducing the cost of frequent track component replacement.

Core Components of Bucket Wheel Reclaimer

The long-term reliable operation of ZOOMRY Bucket Wheel Reclaimer, from bucket wheel drive to electrical control system, every component has undergone simulation testing under power plant and mine reclaiming conditions, ensuring adaptation to continuous precise reclaiming needs in global industrial scenarios.

Precise Bucket Wheel Drive Unit

The bucket wheel drive system focuses on “precise speed control + impact resistance”, with drive motor power 75-1100Kw, matched in gradients according to reclaiming scale: 500-1000m³/h suitable for 75-220Kw motors, 1000-2000m³/h for 220-630Kw motors, 2000-3000m³/h for 630-1100Kw motors. The motor adopts “high-efficiency permanent magnet synchronous” technology, with efficiency up to 96.5%, saving 12% energy compared to ordinary asynchronous motors, and equipped with IP55 protection grade and anti-condensation heating device, capable of resisting erosion in high-dust power plants and high-humidity mines. The supporting reducer uses a “hardened planetary reducer”, with transmission efficiency of 97.5%, load capacity 50% higher than ordinary reducers, capable of withstanding instantaneous impact loads when the bucket wheel grabs hard materials (maximum impact torque up to 1.8 times rated); the reducer output shaft and bucket wheel shaft adopt “elastic coupling + positioning pin” dual connection, buffering startup impact while ensuring bucket wheel coaxiality (deviation ≤0.05mm), avoiding reclaiming deviation due to eccentricity. In addition, the drive system is equipped with a “torque monitoring and protection” device, real-time feedback of bucket wheel load; when load exceeds 120% of rated, it automatically reduces speed, and cuts power when exceeding 150%, protecting drive components from damage.

Stable Conveying Connection System

The conveying system, as the core connection for “bucket wheel reclaiming - backend transfer”, focuses on “stable conveying + low residue”: reclaiming conveyor belt width 1200-1600mm, belt speed 2.5-5.0m/s, precisely matched to reclaiming volume — 500-1500m³/h suitable for 1200mm width + 2.5-3.0m/s speed, 1500-3000m³/h for 1400-1600mm width + 3.0-5.0m/s speed, ensuring synchronization of reclaiming and conveying rhythms, avoiding material accumulation and blockage. The conveyor belt adopts “high wear-resistant PVG flame-retardant rubber belt” (thickness 14mm), with longitudinal tensile strength up to 2000N/mm, surface treated with “diamond anti-slip pattern + polishing” dual processing, improving anti-slip performance by 50%, preventing slippage of wet coal or sticky slag during conveying; both sides are equipped with 400mm high “wear-resistant rubber skirts + soft sealing strips”, reducing side leakage, with leakage rate ≤0.5%, meeting power plants’ strict material recovery requirements. The conveying system is also equipped with an “automatic deviation correction + cleaning” combination device: belt deviation correction uses “passive hydraulic centering idlers”, with correction response time ≤2 seconds, avoiding conveying deviation due to belt runout; head and tail each equipped with a set of “heavy-duty polyurethane scrapers + brushes”, cleaning rate up to 99.8%, thoroughly removing residual material on the belt surface, reducing belt wear and extending service life to over 3 years.

Precise Electrical Control and Hydraulic System

The electrical control system focuses on “precise reclaiming path planning”, equipped with a 15-inch high-definition HMI touch screen (supporting language switching in English, Russian, Spanish, Chinese, etc.), capable of storing 5 sets of reclaiming scenario programs (such as power plant “fixed-point coal reclaiming”, mine “layered ore reclaiming”), one-key recall during switching without repeated debugging. The system supports three control modes, all optimized around “precise reclaiming”:

1. PLC fully automatic mode: through laser level meter + infrared positioning sensor, real-time collection of stockpile height and reclaiming position data, automatic planning of reclaiming path (such as “bottom-to-top layered reclaiming” “fan-shaped reclaiming along stockpile arc”), synchronously controlling bucket wheel speed, crawler travel speed and slewing angle, achieving “unmanned” precise reclaiming, with reclaiming quantity deviation ≤3%, suitable for power plant boiler feed precision needs;
2. Remote control mode: equipped with 200m range industrial-grade wireless remote controller (anti-interference compliant with IP67 standard), operators can observe stockpile status in safe areas (such as power plant control room, mine watchtower), real-time adjust reclaiming parameters — for example, during mine layered reclaiming, remotely fine-tune slewing angle to ensure uniform layer thickness, avoiding mixing of different grade ores;
3. Manual mode: quick switch in emergencies, manual interface equipped with “reclaiming quantity warning” function, when detected reclaiming quantity exceeds set threshold (such as 3300m³/h), automatically reduces bucket wheel speed and triggers audible and visual alarm, ensuring precise control. The hydraulic system provides power for crawler travel and slewing mechanism, with the core being a “graded hydraulic pump station” (matched to equipment specifications with total power 166-1410Kw), oil tank capacity 1200-2500L, equipped with quadruple filtration devices (filtration precision 5μm), hydraulic oil cleanliness reaching NAS 7 level, reducing hydraulic component wear, with system annual failure rate below 0.3%. Hydraulic pipelines adopt “stainless steel joints + high-pressure hoses” (working pressure 31.5MPa), excellent corrosion resistance, suitable for high-dust power plants and high-salt fog mines, and pipeline layout uses “modular quick-connect” design, reducing local failure replacement time to within 1.5 hours.

Modular Transportation and Efficient Installation

Addressing the pain points of global power plant and mine projects such as “difficult cross-border equipment transportation and long installation cycles”, ZOOMRY Bucket Wheel Reclaimer adopts a “reclaiming-specific modular disassembly + high-proportion pre-assembly” design, significantly reducing transportation and installation difficulty while ensuring precise reclaiming performance, ensuring rapid project commissioning.

Modular Disassembly

The Bucket Wheel Reclaimer equipment is disassembled into “bucket wheel reclaiming module, slewing drive module, crawler chassis module, electrical control module, hydraulic module” 5 standard units based on the “reclaiming function priority” principle, each unit dimension strictly fitting 40-foot high cube containers (length 12.03m × width 2.35m × height 2.69m): the bucket wheel reclaiming module reduces height to 2.4m through hydraulic folding of the reclaiming arm, weight controlled within 32 tons (15% lighter than similar stacker-reclaimer modules); the slewing drive module integrates slewing bearing and drive motor, weight ≤28 tons; the crawler chassis module is split into left and right parts, each ≤45 tons; electrical control and hydraulic modules are integrated in waterproof boxes (dimensions 1.5m×1.2m×2.0m), requiring no special transport permits. Compared to the traditional integral reclaimer’s “special transport + oversized item customs declaration” mode, cross-border logistics costs are reduced by 40%, and core reclaiming components (such as bucket wheel, slewing bearing) are packaged with “anti-rust + anti-collision” double-layer protection before leaving the factory, with wear-resistant protective film on bucket wheel blade surfaces, avoiding precision damage due to bumps during transportation, suitable for logistics conditions in Europe, Southeast Asia, Africa and other global regions.

Pre-Assembly Before Leaving Factory

85% of pre-assembly work is completed before the equipment leaves the factory, focusing on core reclaiming functions: precise docking of bucket wheel and reclaiming arm (coaxiality deviation ≤0.05mm), no-load debugging of slewing drive system (slewing precision calibrated to ≤0.3°), preliminary connection and sealing test of hydraulic pipelines (72 hours no leakage), pre-setting of reclaiming programs in electrical control system, and 100-hour “simulated power plant/mine reclaiming” full-load trial run (verifying reclaiming quantity deviation, slewing precision), ensuring zero failures during on-site installation. On site, only 3 core processes need completion: first, modular unit splicing, connecting bucket wheel module with slewing module and left/right crawler chassis parts via high-strength bolts (M36, torque 2200N·m), completable by 3 people in 3 hours; second, final docking of hydraulic pipelines and electrical plugs, using “quick-connect joints + anti-misconnection design”, avoiding reverse connection, taking ≤1.5 hours; third, reclaiming precision fine-tuning, calibrating bucket wheel reclaiming position with laser positioning instrument, adjusting slewing angle error, taking ≤1 hour. A skilled team can complete all installation and commissioning within 1.5 days for production, shortening the industry average 3-day installation cycle by 50%, particularly suitable for power plants and mines with “high downtime impact and need for rapid commissioning”. ZOOMRY provides multilingual technical manuals including reclaiming precision calibration guidelines, with manuals highlighting key points (such as bucket wheel coaxiality adjustment, slewing bearing seal installation), along with 24-hour online technical support, assisting customers via video guidance to resolve installation questions without needing professional heavy equipment installation teams.

Reliable Guarantee for Precise Reclaiming

As precise reclaiming equipment for the global industrial market, ZOOMRY Bucket Wheel Reclaimer ensures compliant use in different countries and regions through multiple international certifications and reclaiming scenario-specific quality control, while guaranteeing reliability of continuous precise reclaiming.

International Certifications

The equipment has passed EU CE certification (Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2014/30/EU), completing 14 specialized tests for safety requirements of precise reclaiming equipment, including “reclaiming mechanism load strength” (simulating 3 times rated reclaiming load), “slewing emergency braking response” (≤0.5 seconds), “electrical safety protection” (IP65), “electromagnetic compatibility” (resistant to strong electromagnetic interference in power plants), allowing direct entry into the European Economic Area (EEA) market; passed Russian Customs Union EAC certification, meeting the operating environment requirements of CIS countries for “-30℃ low-temperature power plants and mines”, with technical documents provided in Russian version, including reclaiming-specific maintenance points such as “bucket wheel lubrication scheme under low temperature” and “crawler anti-freeze startup steps”, facilitating local regulatory review. In addition, the equipment complies with ISO 9001 quality management system and ISO 14001 environmental management system, with fully traceable production processes — from Mn13 material testing of bucket wheel blades (yield strength ≥800MPa) to precision testing of slewing bearings (clearance ≤0.1mm), each process has detailed quality records, ensuring consistency and precision in batch production.

Reclaiming-Specific Quality Control

ZOOMRY has built its own “reclaiming equipment specialized testing laboratory”, equipped with over 60 professional devices such as bucket wheel reclaiming precision tester, slewing angle calibrator, and hydraulic system high-pressure test bench, conducting reclaiming scenario-specific tests on core components:

• Bucket wheel system: completes “1000 layered reclaiming tests” (simulating mine different grade ores), with layer thickness deviation ≤50mm; “500 large lump impact tests” (single lump weight 100kg), no deformation or cracks in bucket wheel blades;
• Slewing mechanism: conducts “360° slewing precision test”, arbitrary angle deviation ≤0.3°; “100-hour continuous slewing test”, slewing bearing temperature ≤65℃, no abnormal noise;
• Conveying system: performs “100-hour full-load conveying test” (at 3000m³/h handling capacity), belt runout ≤10mm, material residue rate ≤0.2%;
• Electrical control system: passes “100-hour power plant electromagnetic interference test” and “200m wireless remote control signal stability test”, with reclaiming parameter control error ≤2%. Each Bucket Wheel Reclaimer must pass 18 strict tests before leaving the factory, including “reclaiming quantity deviation test (500-3000m³/h full range)”, “-30℃ low-temperature startup test”, “crawler slope climbing test (slope ≤12°)”, “slewing emergency braking test”, etc., and can only be delivered to customers after passing, ensuring reliable operation in global power plant, mine and other precise reclaiming scenarios.

Technical Parameters

Choose ZOOMRY

Customer Value

• Improved reclaiming precision: ±3% reclaiming quantity deviation far below industry average 5%, suitable for power plant boiler feed precision needs (avoiding thermal efficiency drop due to underfeeding or furnace coking due to overfeeding), mine layered reclaiming reduces mixing of different grade ores (grade deviation ≤0.5%), enhancing material utilization value;
• Strong site adaptability: 125-193KPa low ground pressure requires no modification of power plant coal yard or mine stockyard ground, reducing site preparation costs; ±360° slewing + crawler travel covers large stockpile range, single unit can replace 2 fixed reclaimers, lowering equipment investment;
• Optimized operation and maintenance costs: high wear-resistant components (Mn13 bucket wheel, PVG conveyor belt) extend replacement cycles, reducing maintenance costs by 50% compared to ordinary reclaimers; annual failure rate <0.5%, calculated at 3000m³/h reclaiming capacity, reducing annual downtime losses by about 1.5 million RMB; modular component design, local failures only require corresponding module replacement, shortening maintenance time by 40%.

Service Support

ZOOMRY has established a comprehensive “technology + spare parts + training” service system for global power plant and mine precise reclaiming needs:

• Technical support: provides multilingual reclaiming-specific technical documents (including operation manual, reclaiming precision calibration guide, troubleshooting manual), covering “power plant coal fixed-point reclaiming parameter settings”, “mine layered reclaiming path planning”, “bucket wheel lubrication in low-temperature environments”, with high-definition diagrams; 24-hour online technical consultation, engineer response time not exceeding 3 hours, assigned personnel all have over 8 years of precise reclaiming equipment service experience, familiar with equipment pain points in high-dust power plants and high-load mines (such as bucket wheel jamming handling, slewing precision calibration);
• Spare parts assurance: relying on efficient global supply chain collaboration, pre-stocking core reclaiming spare parts such as bucket wheel blades, slewing bearings, hydraulic filters, conveyor belts; after customer request, rapid shipment via DHL, FedEx and other international logistics, with conventional spare parts delivery cycle controlled at 5-10 days depending on region; for key customers, provides “spare parts advance planning service” — formulating bulk shipment or phased replenishment plans based on reclaiming intensity (such as power plant winter high-load coal reclaiming) and wear part replacement cycles, avoiding reclaiming interruptions due to spare parts shortages;
• Specialized training: provides “precise reclaiming operation specialized training” (online live teaching + on-site guidance) for global customer teams, covering “bucket wheel reclaiming precision calibration methods”, “reclaiming parameter optimization for different materials”, “emergency fault handling (such as bucket wheel jamming, slewing mechanism abnormal noise)”, ensuring customer teams master precise reclaiming skills, suitable for continuous operation needs in power plants and mines.
