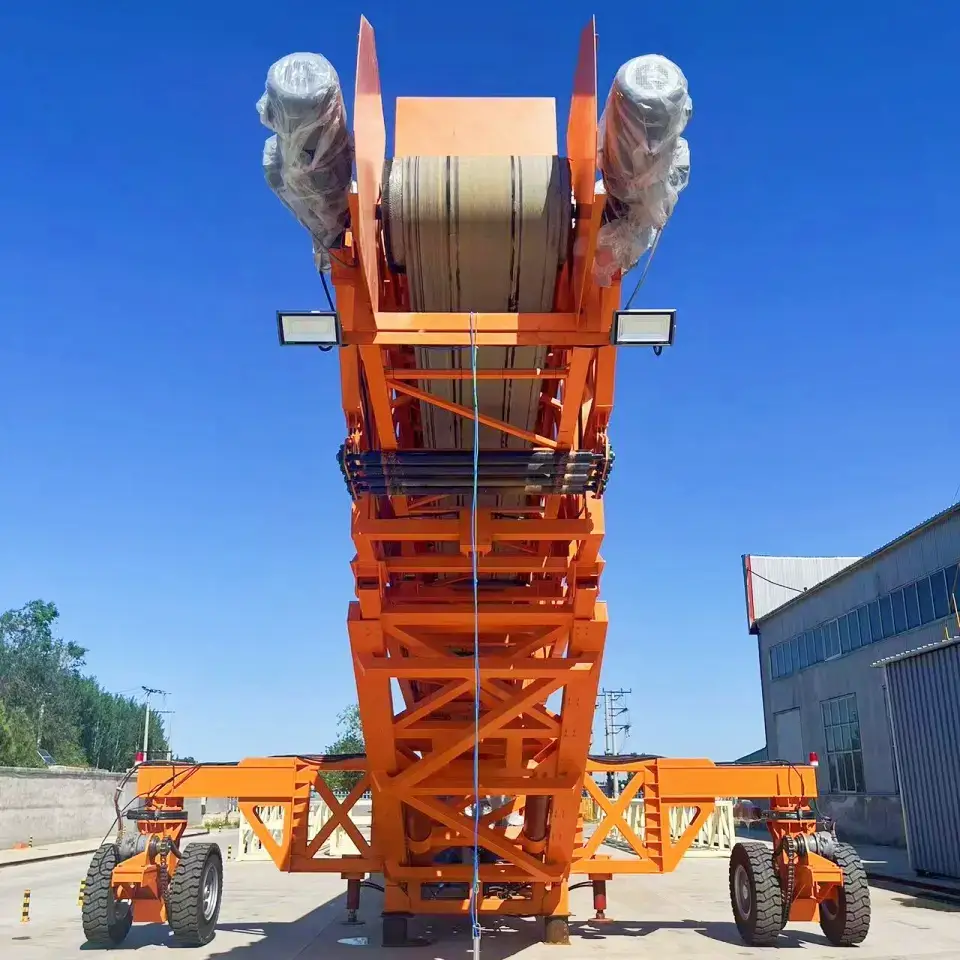

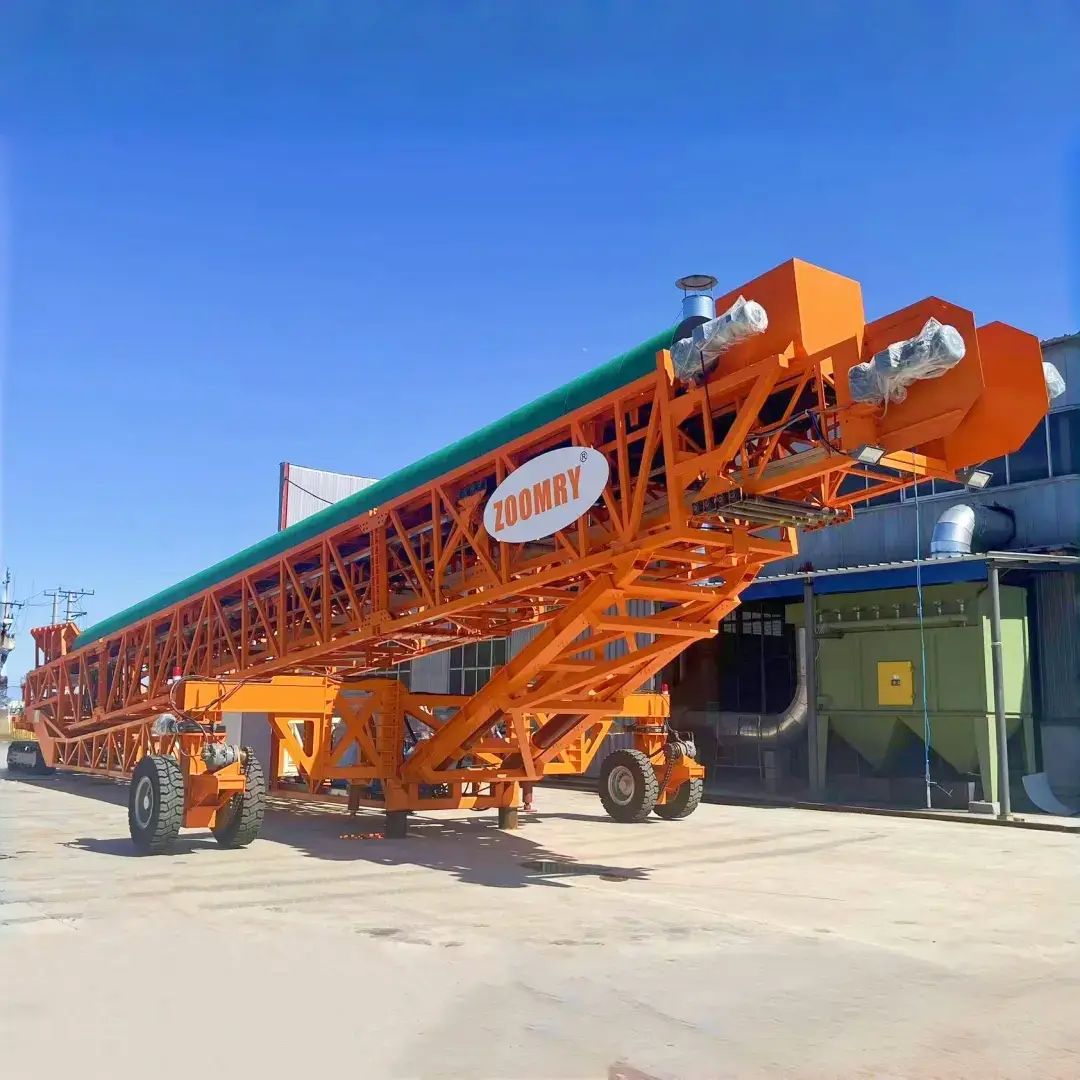

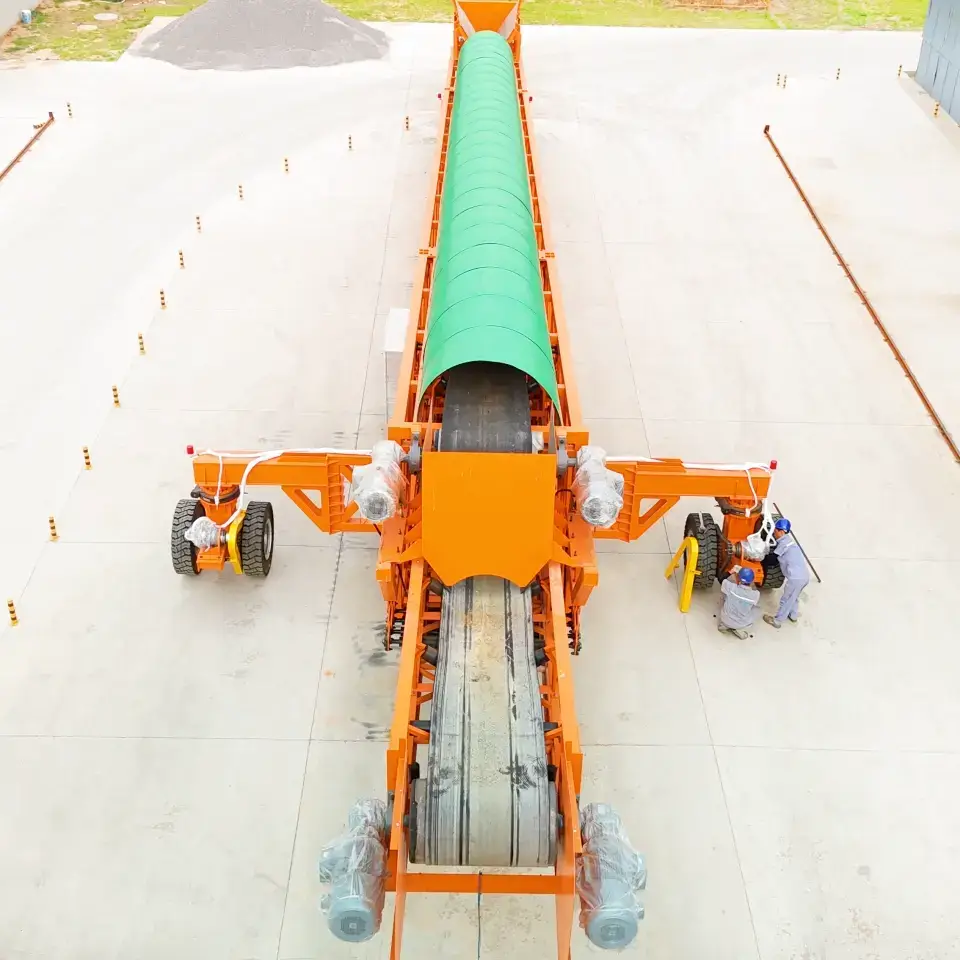

Tracked Radial Stacker
Tracked Radial Stacker
Tracked Radial Stacker
Tracked Radial Stacker

Tracked Radial Stacker

As the benchmark product of fourth-generation intelligent bulk material handling equipment, ZOOMRY ZR Series Tracked Radial Stacker integrates three core advantages: all-terrain mobility, precision stacking control, and low-carbon efficient operation. Validated through 20 years of engineering expertise and 200+ global projects, this tracked radial stacker breaks spatial limitations of traditional fixed stockyards, achieving full-scenario coverage from mine crushing stations to port terminals. Operational efficiency improves by over 40% with 35% reduction in comprehensive operating costs. Featuring ISO 21873-certified mobile design and patented dynamic balancing system, the tracked radial stacker adapts to extreme conditions ranging from -40C arctic mines to 55C tropical ports, delivering the ultimate "zero secondary transportation" solution for global customers.
Product name Telescopic Stacker
Material High Quality Carbon Steel
Belt width 800mm;914mm(36
Max Capacity 450-3500m³/h(Customer
Certification ISO9001;CE;ISO14001;EAC
Advantages Portable, rotatable, inclination adjustable, conveying length retractable, radial movement
Application Mining, Port, Cement, Steel, Metallurgy, Electric Power, Coal, Machinery and Other Industries.
Product Consultation
  • Details

As the benchmark product of fourth-generation intelligent bulk material handling equipment, ZOOMRY ZR Series Tracked Radial Stacker integrates three core advantages: all-terrain mobility, precision stacking control, and low-carbon efficient operation. Validated through 20 years of engineering expertise and 200+ global projects, this tracked radial stacker breaks spatial limitations of traditional fixed stockyards, achieving full-scenario coverage from mine crushing stations to port terminals. Operational efficiency improves by over 40% with 35% reduction in comprehensive operating costs. Featuring ISO 21873-certified mobile design and patented dynamic balancing system, the tracked radial stacker adapts to extreme conditions ranging from -40°C arctic mines to 55°C tropical ports, delivering the ultimate "zero secondary transportation" solution for global customers.

Tracked Stacker Dynamic Operation Diagram


Product Technical Features

  • All-Terrain Adaptive System: BICES-certified independent suspension chassis with multi-stage hydraulic buffers enables ≤35° slope stability (ISO 2867 standard)
  • Intelligent Stacking Algorithm: PID closed-loop control system achieves ±50mm stacking accuracy (CEMA Grade B standard)
  • Modular Power Pack: Tier 3 diesel engine + dual-pump hydraulic system delivers 92% power matching efficiency (SAE J1349 standard)
  • 360° Continuous Rotation: Cross roller bearing slewing ring provides ≥280kN·m torque capacity (DIN 15071 standard)

Tracked Radial Stacker Technical Parameters

Core SpecificationsZR800ZR1000ZR1200
Conveying System


Belt Width (mm)80010001200
Belt Speed (m/s)0.8-3.151.0-3.151.25-4.0
Maximum Inclination18°18°20°
Power System


Diesel Engine ModelCummins QSB4.5Cummins QSB6.7Cummins QSL9
Rated Power (kW)97134242
Hydraulic Flow (L/min)150210320
Structural Parameters


Ground Pressure (kPa)8592105
Slewing Ring Model01.40.112001.45.125001.50.1400
Maximum Stacking Height (m)121518

Application Scenario Solutions

Mine Crushing System Solution

The tracked radial stacker seamlessly interfaces with various crushing units for continuous stacking of high-hardness materials like basalt and granite. Equipped with intelligent flow matching algorithms, it precisely coordinates with 1,200t/h crusher outputs. Hydraulic pitching mechanism (±5° adjustment range) effectively resolves material segregation caused by particle size variations. NM500 wear-resistant liners and multi-stage buffers enable precise layered placement of 2 million tons/year acidic materials in copper leaching operations, maintaining stacking height tolerance within ±0.3m.

Port Bulk Cargo Handling Solution

For 400,000DWT bulk carrier operations, the tracked radial stacker integrates automated coordination modules to achieve seamless material flow from grab unloaders to loading systems. Laser 3D modeling technology enables isolated stockpile management of coal, iron ore, and bauxite within single storage areas, improving space utilization by 65%. Dynamic balance compensation systems maintain ±50mm stacking precision under Beaufort Scale 7 conditions, ensuring all-weather port operations.

Renewable Resource Processing Solution

In construction waste recycling scenarios, multi-spectrum material recognition enables automatic 0-50mm aggregate classification with ±30mm layering accuracy. The tracked radial stacker incorporates high-pressure micro-mist dust suppression (10-50μm droplets) and negative pressure recovery systems, controlling PM10 emissions below 5mg/m³ while maintaining 200m+ visibility. Modular design allows rapid integration with screening systems, achieving 8,000 tons/day recycled aggregate throughput.

Core Technological Advantages

Dynamic Balance Chassis System

  • Three-stage pressure compensation valve group (35MPa working pressure)
  • CAN bus-controlled auto-leveling mechanism (±0.5° precision)
  • Standard anti-tip warning system (EN 16203 standard)

Intelligent Material Distribution Control

  • Laser scanner + RTK positioning (±10mm accuracy)
  • Real-time angle of repose compensation (±2° correction)
  • Optional thermal imaging module (-20°C~300°C monitoring)

Full Lifecycle Management

  • Critical component lifespan prediction (≤10% bearing life error)
  • Hydraulic oil contamination monitoring (NAS 1638 Class 7)
  • Remote diagnostics interface (OPC UA protocol support)

Tracked Radial Stacker


Technical Comparative Advantages

ParameterZR Tracked Radial StackerIndustry AverageImprovement
Energy Consumption (t/kW·h)0.851.229.2%
Relocation Preparation<2 hours4 hours50%
Stacking Uniformity (CV)≤8%15%46.7%
Extreme Condition Range-40°C~+55°C-20°C~+45°C100% wider

Safety & Environmental Features

  • Safety System: Triple braking system (mechanical+hydraulic+electrical), ROPS/FOPS certified cabin
  • Eco-Design: Low-noise hydraulics (≤82dB(A)), oil mist collector (≥95% efficiency)
  • Smart Protection: Millimeter-wave collision radar (50m detection), grounding resistance monitor (≤4Ω)
