Telescopic stacker is a mobile material handling equipment developed in response to the needs of stockyard stacking, reclaiming, truck/ship loading and unloading, aiming at improving stacking efficiency. With its advantages of flexible mobility, easy operation, low maintenance cost and high cost-effectiveness, the radial telescopic stacker is widely used in industries such as seaports, mining and bulk material transportation that require high flexibility of equipment and space utilization rate, so as to achieve higher stacking capacity.
● Rotating telescopic stacking function with high efficiency;
● Compared with conventional stacking equipment with a loading height of 5m-8m, the working height of the telescopic radial stacking conveyor can reach 20m, greatly improving the utilization rate of the site space;
● High mobility, once the stacking task in one place is completed, the stacker can be easily transported to other sites;
● Higher cost-effectiveness than large-scale stacking reclaiming equipment;

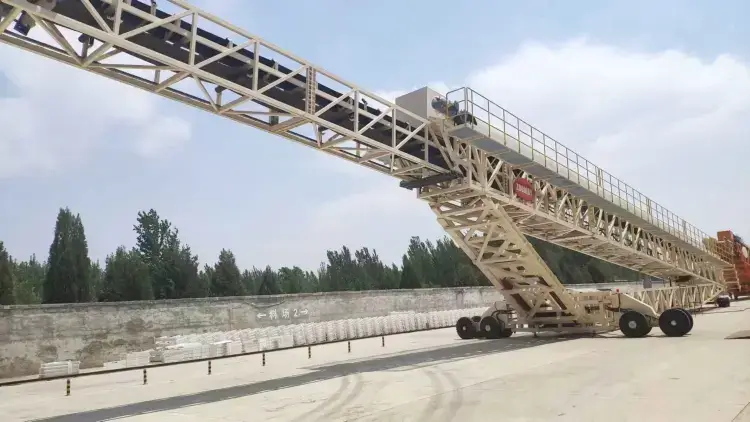

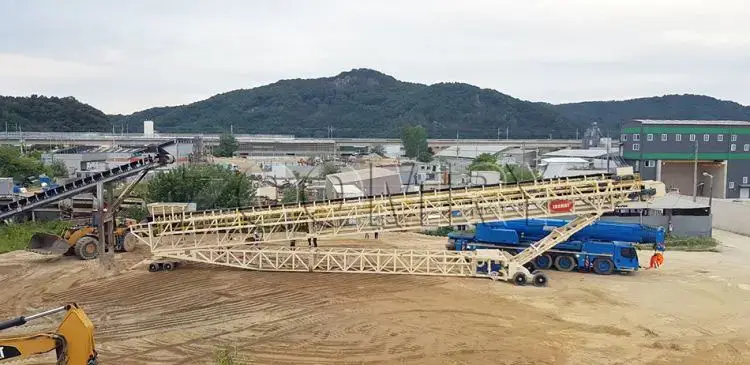

Telescopic stacker is suitable for mobile stacking tasks in various scenarios, with a stacking height of up to 20m. The radial, telescopic and swinging functions enable the operator to have full control when stacking various materials, greatly improving the stacking capacity and efficiency while eliminating material separation, degradation, contamination and compaction.
Its optimized design allows for up to +28% larger stacking capacity compared with traditional fixed-length conveyor systems, providing a solution for efficient material handling.
| Product name | Telescopic Stacker |
| Material | High Quality Carbon Steel |
| Belt width | 800mm;914mm(36'');1000mm;1200;1400mm;1600mm;(Customer's Request) |
| Max Capacity | 450-2400m³/h(Customer's Request) |
| Certification | ISO9001;CE;ISO14001;EAC |
| Advantages | Portable, rotatable, inclination adjustable, conveying length retractable, radial movement |
| Application | Mining, Port, Cement, Steel, Metallurgy, Electric Power, Coal, Machinery and Other Industries. |
| Model | Belt width(mm) | Max capacity(m³/h) | Belt speed(m/s) | Standard length(m) | Max. inclination(°) | Max. inclination(m) |
| ZR80SF | 800 | 500 | 2.5 | 30/40/50 | 20° | 10-20 |
| ZR100SF | 1000 | 850 | 2.5 | 30/40/50 | 20° | 10-20 |
| ZR120SF | 1200 | 1500 | 3.15 | 30/40/50 | 20° | 10-20 |
| ZR140SF | 1400 | 2100 | 3.15 | 30/40/50 | 20° | 10-20 |
| ZR160SF | 1600 | 3500 | 4.00 | 30/40/50 | 20° | 10-20 |

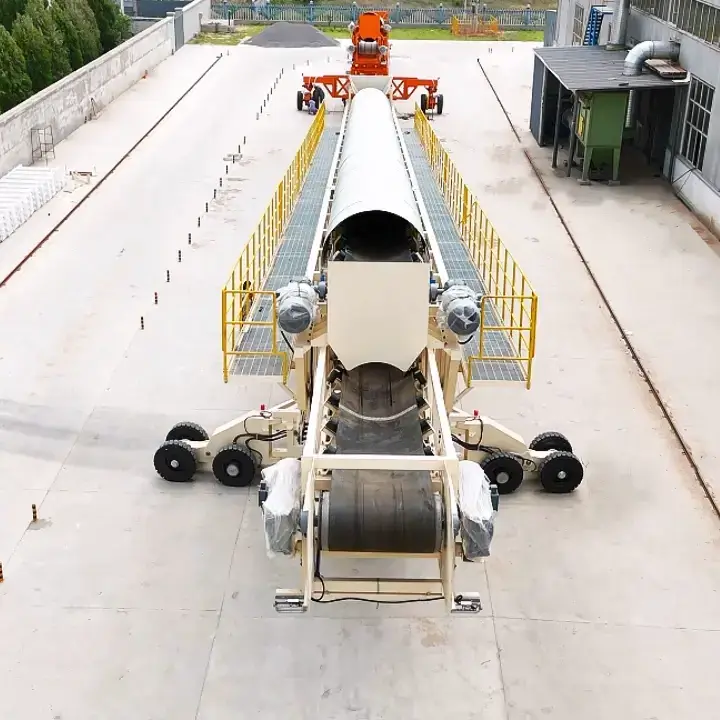

The front wheel walking device mainly consists of walking frame, hydraulic motor, walking tires, chain and chain guard, which is connected with the base through the pin. Note that the tire pressure of the walking tires is 11-12Mpa, and the maximum cannot exceed 12Mpa.
In normal use, the hydraulic legs will completely lift the front part of the base. After the tires leave the ground, remotely control the front wheel walking device to the working position. After arriving at the working position, use the tie rods on both sides of the base to connect with the pins of the front wheel walking device, and then the hydraulic outriggers can be retracted, and all the tires are on the ground, so that it can work or rotate normally; when the mobile forklift truck needs to leave the work site, it can lift the hydraulic outriggers again, so that the tires will leave the ground, and then it can be remotely controlled to the front wheel driving device.
The tail wheel rotating device mainly consists of a tire, a turntable, and a bracket, and both the base and the fixed frame of the belt conveyor are installed on the bracket of the tail wheel rotating device.

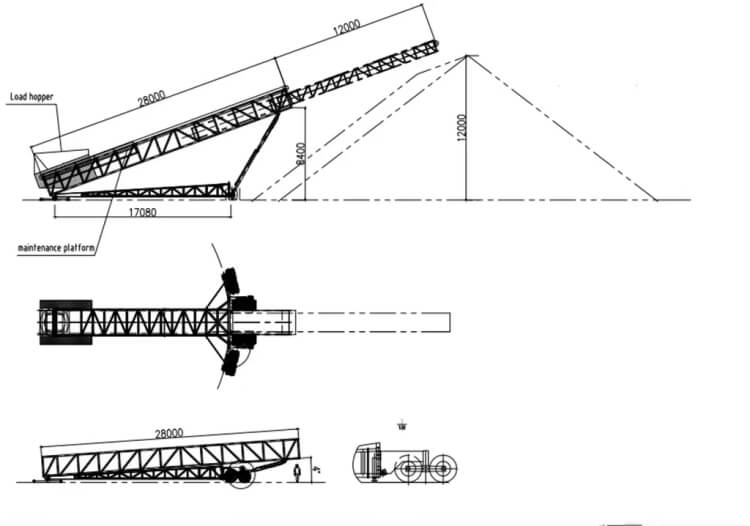

1-Hydraulic lifting system 2-Front wheel walking device 3-Hydraulic outriggers 4-Hydraulic station system 5-Base 6-Electrical control box 7-Tail wheel rotation device 8-Tow bar 9-Maintenance platform 10-Hopper 11-Main conveyor belt 12-Wire rope traction device 13-Telescopic conveyor belt
● The telescopic length of the stacker can be adjusted to further improve the stacking capacity.
● The stacker can be moved as a whole, which is convenient for users to change the location of use.

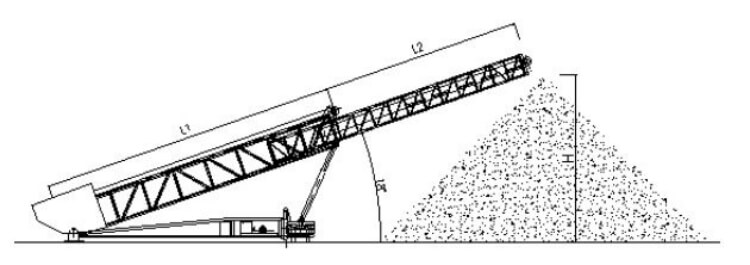

● The stacking height can be changed by adjusting the inclination of the stacker through the hydraulic cylinder.
● The stacker can be designed according to the user's needs.
