ZRLD-TU1800 Mobile Truck Unloader (4-Lane)

The ZOOMRY ZRLD-TU1800 Tracked 4-Lane Truck Unloader boasts core competitiveness built on "1800mm extra-wide belt + 600-1800tph high capacity + 4-lane synchronous unloading", accurately addressing the key pain points of "low efficiency in bulk unloading of heavy bulk materials and difficulty in navigating harsh terrain" faced by ports and large-scale mining operations. The equipment has been comprehensively optimized in structural strength, operational stability, and international compliance, and has obtained CE, EAC, and KCS certifications, making it the preferred solution for global customers in handling heavy bulk materials such as coal and ore.

Equipment Composition and Advantages

The performance design of the ZRLD-TU1800 Mobile Truck Unloader is fully centered on customers' needs of "reducing time consumption in bulk unloading, ensuring stable heavy material transfer, and enabling navigation in complex terrain". Every parameter has been verified through field tests under heavy bulk material working conditions to ensure reliability during high-intensity operations:

• 4-Lane Synchronous Unloading: The equipment adopts an independent 4-lane feeding structure, supporting simultaneous docking and unloading of 4 large 100-ton dump trucks. Compared with traditional 2-lane equipment, the number of trucks unloaded per hour increases from 9 to 18, completely resolving the industry pain point of "trucks queuing for over 2 hours". Each lane is equipped with an independent level sensor and a frequency conversion control module, which can adjust the transfer speed in real time according to the material accumulation in a single lane, avoiding overall shutdown caused by overload of a single lane and ensuring continuous and stable unloading of bulk materials. For example, when 5,000 tons of bulk materials arrive at a port in a single day, the ZRLD-TU1800 Mobile Truck Unloader can complete all unloading in only 5 hours, which is 4 hours less than similar 2-lane equipment.
• Wide-Range Capacity of 600-1800tph: The capacity range covers 600-1800tph, and stepless adjustment is achieved through the Siemens PLC intelligent control system: it can be set to 600tph during daily transfer in mining operations to reduce energy consumption; when bulk materials arrive at the port in a concentrated manner, it can be switched to the 1800tph full-load mode to match the unloading needs of Panamax bulk carriers (with a deadweight of 60,000-80,000 tons). The equipment has an optimized transfer design for heavy materials; the diamond-shaped anti-slip pattern on the belt surface can prevent ore and coal from slipping, improving the stability of material transfer by 45% compared with ordinary belts and avoiding efficiency loss and cost waste caused by material leakage.
• Heavy-Duty Tracked Chassis for Unimpeded Navigation in Harsh Terrain: Aiming at complex scenarios such as port gravel yards and mining muddy roads, a heavy-duty tracked chassis design is adopted - the track width reaches 800mm, the ground contact area is 12㎡, and the ground pressure is ≤55kPa. It can move freely on non-hardened roads with a slope of ≤15° without pre-laying steel plates or concrete. The chassis frame is made of 40Cr forged steel, and the thickness of key load-bearing parts reaches 30mm. It has passed 100,000 heavy-load rolling tests without deformation, ensuring the equipment maintains structural stability during 24-hour continuous operation, with a failure rate 20% lower than that of ordinary tracked unloaders.

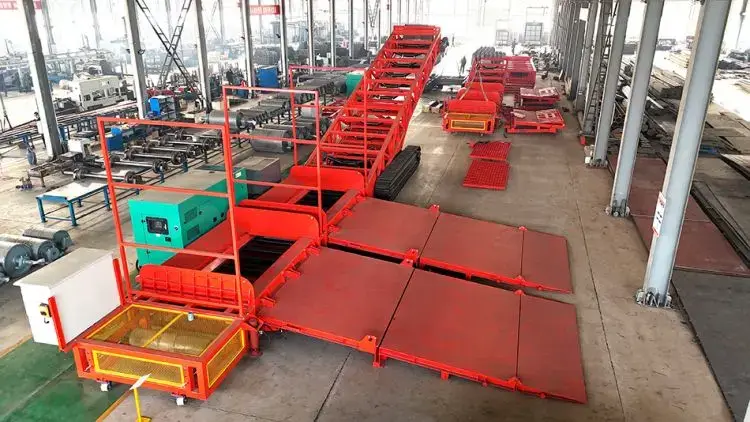

• Low Hopper + Hydraulic Ramp for Adaptation to Large Trucks: The total width of the hopper is custom-made to 8m, and the feeding height is only 1.5m, eliminating the need to adjust the unloading height of mainstream 100-ton dump trucks (such as CAT 793F and VOLVO A60H) and avoiding time waste caused by frequent posture adjustments of trucks. The hopper is equipped with an optimized grille (with optional spacing of 50-200mm) to filter large impurities and prevent belt jamming; it is equipped with a supporting hydraulically driven ramp (slope 12.1%, i.e., 6.7deg), and the surface is paved with high-manganese steel anti-slip plates, which eliminates the risk of slipping when it rains or under the rolling of heavy vehicles, ensuring the safety of large trucks when going up and down the ramp.

Structural Features

In view of the characteristics of 4-lane bulk unloading and heavy material transfer, the ZRLD-TU1800 Mobile Truck Unloader has undergone specialized upgrades in structural strength and component durability to ensure a low failure rate during long-term heavy-load operations:

• Multi-Point Hydraulic Support: The bottom of the equipment is equipped with 6 sets of heavy-duty hydraulic jacks (with a single set load capacity of 30 tons), distributed in a "double-row three-support-point" pattern, covering the entire load-bearing area of the 4 lanes. During operation, the jacks can be synchronously lifted within 40 seconds to stably support the equipment on the ground, with the tracks completely free from load, avoiding the tilting of the machine body when 4 lanes are unloading simultaneously (each lane bears 50 tons). Tests show that the levelness error of the equipment can be controlled within ≤3mm, which effectively reduces the probability of belt deviation and extends the service life of the belt to more than 50,000 hours. The jacks are equipped with pressure sensors and overload protection devices, which will automatically alarm when the load of a certain support point exceeds the limit to prevent structural damage.
• 1800mm Extra-Wide Belt Transmission System: The belt adopts a composite structure of "double-layer polyester canvas core + 30mm thickened wear-resistant rubber", with a transverse tensile strength of 2500N/mm, which can withstand the impact of heavy materials of 20kN; the drive system is upgraded to dual SEW/FLENDER gear motors (with a total power of 90kW), and the starting torque is 50% higher than that of the single-motor design, completely solving the problem of belt jamming during 1800tph full-load operation. The rollers are made of cast steel (ZG35CrMo) with a wall thickness of 25mm and a static balance accuracy of G4.0 class. The surface is covered with a 15mm thick diamond-shaped rubber layer to increase friction with the belt and prevent belt slipping during high-flow material transfer.
• Modular Split Design for Convenient Transportation and Installation: Considering transportation costs and installation efficiency, the equipment adopts a three-module split design of "hopper - belt conveyor - tracked chassis". The maximum size of each module is controlled within the loading range of a 40”HQ container (the longest module ≤12m), reducing transportation costs by 25% compared with integral transportation. On-site installation does not require large hoisting equipment and can be completed through bolt connection and plug-in electrical connection. With the multilingual installation manual (including 3D drawings) and video guidance provided by ZOOMRY, the assembly and commissioning of the 4-lane equipment can be completed within 20-25 days - 10 days shorter than the installation cycle of similar international brand equipment, greatly accelerating the commissioning progress of customers' projects.

Application Scenarios

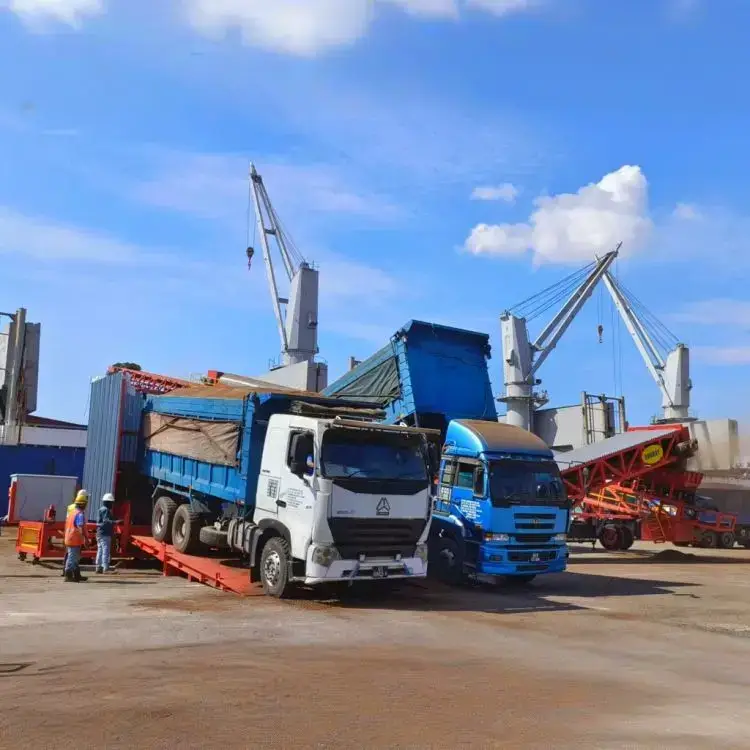

Concentrated Unloading of Heavy Bulk Materials at Ports

In scenarios such as bulk cargo-specific ports and comprehensive hub ports, heavy bulk materials like coal and ore are often transported in a "concentrated arrival" mode. Traditional equipment often causes truck queuing and congestion and limits port throughput due to limited handling efficiency. The 4-lane synchronous unloading and 1800tph high capacity of the ZRLD-TU1800 Mobile Truck Unloader allow flexible adjustment of capacity according to the arrival volume of bulk materials, avoiding energy waste caused by "using a large machine for small tasks"; the tracked design can adjust the operation area at any time according to the storage location of materials in the yard, eliminating the need for frequent truck movement and reducing port site occupation. In practical applications, after the introduction of this equipment, the port bulk material unloading cycle can be shortened by 40%, and the daily bulk material handling capacity can be increased from 8,000 tons to 15,000 tons, effectively improving port turnover efficiency.

Bulk Raw Material Transfer in Large-Scale Mining

In scenarios such as large open-pit mines and underground mining bases, 10,000-20,000 tons of ore raw materials need to be transferred to concentrators every day. Traditional unloading equipment requires 3-4 units to work in coordination, which not only increases equipment procurement and coordination costs but also easily leads to efficiency loss due to poor connection. The 4-lane synchronous unloading of the ZRLD-TU1800 Mobile Truck Unloader enables seamless connection of "4 trucks - 1 unloader - 1 conveyor", and directly transfers ore to ZOOMRY's ZR series belt conveyors through the belt, reducing intermediate transfer links. The low hopper design of the equipment is suitable for rapid material replenishment by loaders in mining areas; the wear-resistant hopper and belt can withstand long-term impact of ore, and the monthly failure rate is controlled within 1%, ensuring 24-hour continuous production in mining operations and helping customers reduce downtime losses by more than 500,000 yuan per year.

Reliable Guarantee from International Certifications

ZOOMRY fully understands customers' strict requirements for "compliance and durability" of heavy-load equipment. From R&D to delivery, the ZRLD-TU1800 Mobile Truck Unloader complies with international standards throughout the entire process and undergoes multiple tests to ensure product quality:

• CE Certification Compliance for Smooth Access to Europe and Globally Recognized Regions: The equipment has obtained EU CE certification (covering machinery safety and electromagnetic compatibility directives). All electrical components (such as Schneider circuit breakers and Siemens PLCs) and hydraulic components (such as Parker hydraulic valves) comply with CE standards, allowing direct access to the 27 EU countries as well as markets in the Middle East, Southeast Asia, and other regions that recognize CE certification. Customers do not need to go through additional compliance procedures, shortening the equipment import cycle.
• Quality Standards Exceeding National Standards with Enhanced Core Components: The core components supporting the equipment all adopt heavy-duty products independently produced by ZOOMRY, and their quality standards fully exceed China's GB standards: the idlers use 308-type heavy-duty bearings with a radial load capacity of 25kN, 50% higher than that of ordinary idlers; the idler runout is ≤0.3mm (GB standard ≤0.5mm), and the noise is ≤40dB (GB standard ≤55dB), ensuring stability during high-flow material transfer; the cleaning scrapers are made of polyurethane + metal composite material, with wear resistance improved by 2 times, which can effectively remove residues of heavy materials and reduce belt wear.
• Full-Process Quality Inspection Covering Heavy-Load Working Condition Verification: ZOOMRY has a professional quality inspection center including a chemical laboratory and a mechanical performance testing laboratory, equipped with more than 60 testing devices. Before leaving the factory, the ZRLD-TU1800 must complete a 72-hour continuous operation test at 1800tph full load, a 50kg heavy ore impact test, and an extreme temperature adaptability test from -30℃ to 50℃. Each piece of equipment is accompanied by a detailed test report to ensure stable operation under heavy-load and extreme environments. The core components (tracks, belts, hydraulic jacks) have all passed fatigue life tests, with a service life commitment of no less than 5 years.

ZOOMRY's Exclusive Customer Services

In response to the "heavy-duty and high-load" characteristics of the ZRLD-TU1800 Mobile Truck Unloader and customers' pain points of "long distance and difficult maintenance", ZOOMRY provides full-life-cycle support:

• Customized Solution Design: ZOOMRY has established a "Specialized Engineer Team for Heavy-Load Equipment" (proficient in English, Russian, and Spanish), which can provide customized services according to customers' specific working conditions (such as large truck models, material density, and operating temperature). For example, it optimizes the heat dissipation structure of the hydraulic system for customers in high-temperature mining areas and widens the hopper for port customers to adapt to special heavy-duty trucks, ensuring perfect adaptation of the equipment to the scenario. At the same time, it provides an integrated solution of "unloader - belt conveyor - stacker" to reduce customers' coordination costs with multiple suppliers.
• Specialized Installation and Training: The installation of the ZRLD-TU1800 Mobile Truck Unloader requires the support of professional heavy-load equipment engineers. ZOOMRY can respond to customers' needs within 72 hours and send engineers with more than 5 years of experience in heavy-duty unloader installation to the site within 10-15 working days (covering major global regions). During the installation process, focus is placed on commissioning core parameters such as 4-lane synchronous control, hydraulic support balance, and belt tension; after commissioning, a 3-day specialized training is provided to customer operators, covering operating specifications for heavy-load operations and emergency fault handling (such as belt jamming and hydraulic overload), ensuring that the customer's team is proficient in equipment operation skills.
• Spare Part Reserve and Quality Assurance: ZOOMRY has heavy-duty spare part warehouses around the world, storing core heavy-duty components of the ZRLD-TU1800 Mobile Truck Unloader (such as track links, 1800mm belts, and hydraulic jacks). Customers can achieve local delivery within 3-5 days, avoiding long-term shutdowns caused by lack of spare parts. The equipment provides a 2-year warranty service; if there are quality problems with core components (such as drive motors and hydraulic systems) during the warranty period, ZOOMRY provides free spare parts and maintenance guidance; after the warranty period, customers can sign an "Annual Maintenance Agreement", and engineers conduct on-site inspections of the equipment's load-bearing structure and operating status every quarter to extend the equipment's service life to more than 8 years.

Why Choose ZOOMRY ZRLD-TU1800 Mobile Truck Unloader?

• Superior Heavy-Load Performance: Compared with similar 4-lane equipment (maximum capacity 1500tph), the 1800tph capacity of the ZRLD-TU1800 Mobile Truck Unloader is 20% higher, and the material leakage rate during 1800tph full-load operation is ≤0.3% (average 1.5% for international brands), helping customers reduce material waste by tens of thousands of yuan annually; the heavy-load failure rate of the equipment is 15% lower, making it more suitable for customers' needs of "continuous operation and low failure rate".
• Significant Cost-Effectiveness Advantage: While maintaining leading performance, the procurement cost of the ZRLD-TU1800 Mobile Truck Unloader is 18%-22% lower, and the price of heavy-duty spare parts is only 50%-60% of that of international brands. For example, the price of the 1800mm wear-resistant belt from ZOOMRY is 45% lower than that of international brands, which can help customers significantly reduce initial investment and later maintenance costs.
• Faster Service Response: ZOOMRY's spare part warehouses and specialized engineers can achieve a fast response of "spare parts delivery within 3 days + engineers on-site within 72 hours", which is more than 50% shorter than that of international brands (average spare parts delivery within 7 days + engineers on-site within 10 days), reducing customers' production loss caused by equipment failure.
