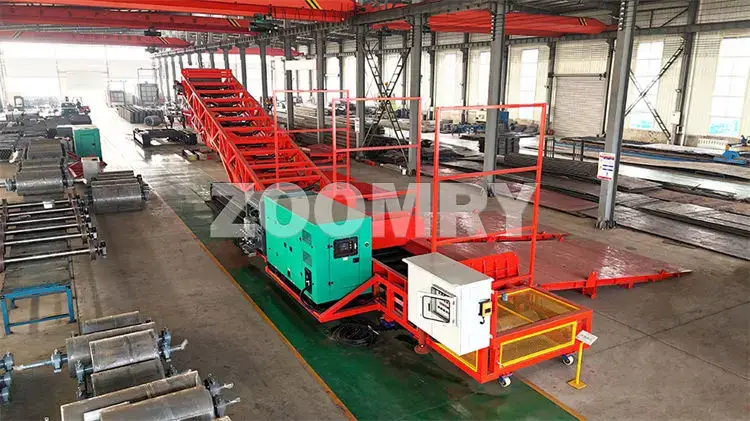

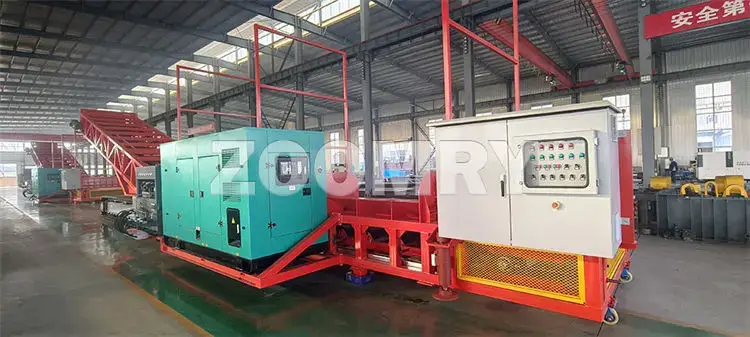

ZOOMRY's Radial Truck Unloader incorporates patented slewing chassis technology, breaking traditional linear operation limitations to achieve 360° dead-angle-free material discharge coverage. Designed for space-constrained bulk material transfer yards, railway freight stations, and steel plant raw material zones, this equipment delivers 300-2000 t/h processing capacity, improving site utilization by 60% and reducing operational costs by 45%.
Core Advantages of Radial Truck Unloader
Omnidirectional Slewing System
- Modular slewing platform: Features a 6.5m-diameter triple-row roller slewing bearing with a load moment of 2500 kN·m.
- Precision positioning: Encoder-based closed-loop feedback ensures ±0.5° angular accuracy.
- Multi-mode operation: The Radial Truck Unloader supports fixed-point discharge, continuous rotation, and sector coverage modes.
Dynamic Material Distribution Technology
- Smart diverter: Hydraulic push rods control dual-channel chutes for real direction switching.
- Flow balancing: Weight sensors + PLC regulation maintain <1.5% output deviation across discharge points.
Compact Structural Design
- Foldable conveyor arm: Extends to 18m during operation and retracts to 9.2m for transport.
- Obstacle avoidance: 3D LiDAR auto-detects obstacles with a 3.8m minimum safety radius.
Technical Specifications
| Parameter Category | Standard Model | Enhanced Model |
|---|
| Processing Capacity | 300-1200 t/h | 800-2000 t/h |
| Rotation Radius | 15 m | 22 m |
| Coverage Area | 706 m² | 1520 m² |
| Slewing Speed | 0.2-1.5 rpm | 0.1-1.2 rpm |
| Conveyor Belt Specification | 1400mm/EP400 | 1800mm/EP600 |
| Drive Power | 2×37kW + 18.5kW slewing | 2×55kW + 30kW slewing |
| Total Weight | 85 t | 125 t |
| Positioning Accuracy | ±50 mm | ±30 mm |
Key Components of Radial Truck Unloader
Slewing Power Assembly
- Dual-motor drive: Combines hydraulic drive and planetary reducers for high-load industrial scenarios.
- Energy-saving control: Auto-shifts to low-speed mode in standby, reducing energy consumption by 40%.

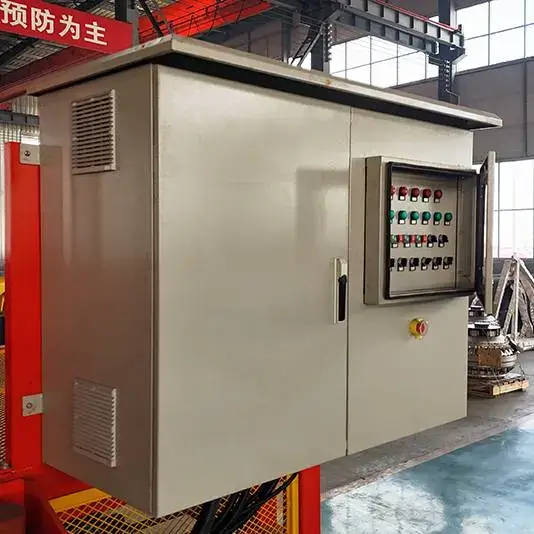

Intelligent Control System
- Multi-objective coordination: The Radial Truck Unloader optimizes paths and sequences for 5 trucks simultaneously.
- Digital twin platform: VR simulation validates operational plans pre-deployment.
Extreme Condition Adaptation
- High-temperature version: Aramid-rein with ceramic coating withstand 450°C material temperatures.
- Explosion-proof version: Complies with ATEX 2014/34/EU, rated IP68.
Industry Applications
Railway Freight Hubs
- Operation mode: Simultaneous unloading across 6 tracks, achieving 35,000 t/d throughput.
- Special configuration: Electromagnetic interference shielding meets railway signal standards.
Steel Plant Raw Material Yards
- Materials: Iron ore, coke, sintered pellets.
- Performance: Controls material drop height to <0.5%, reducing breakage rate to 0.8%.
Bulk Grain Terminals
- Standards: Fully enclosed system complies with HACCP food safety requirements.
- Accuracy: Dynamic weighing error <0.3%, moisture loss <0.15%.
Why Choose ZOOMRY?
- Design phase: 3D point cloud scanning modeling & load spectrum analysis.
- Construction phase: Customized embedded foundations (±2mm tolerance control).
- Maintenance phase: Vibration spectrum analysis for fault prediction.
- Slewing mechanism warranty: 5 years/20,000 hours (2× industry standard).
