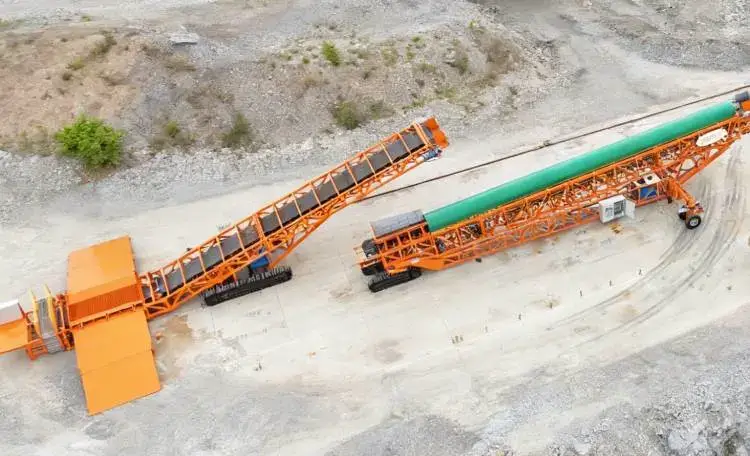

ZRLD-TU1800 Mobile Truck Unloader (2-Lane)

The ZOOMRY ZRLD-TU1800 Tracked 2-Lane Truck Unloader achieves a core breakthrough with its "1800mm-wide belt + 600-1800tph high capacity", accurately meeting the heavy-duty unloading needs of ports and mining industries for large trucks. The equipment has undergone specialized optimizations in heavy-duty chassis stability, high-flow material transfer, and large truck adaptability, and has obtained triple international certifications (CE/EAC/KCS). It serves as a core piece of equipment for global customers in handling heavy bulk materials such as coal and ore.

Equipment Composition and Advantages

The performance design of the ZOOMRY ZRLD-TU1800 Mobile Truck Unloader centers on customers' core needs of "large truck unloading, high-flow transfer, and heavy-duty continuous operation". Every parameter has undergone field tests under heavy bulk material working conditions to ensure stability during high-intensity operations:

• High Capacity of 600-1800tph: The equipment's capacity range exceeds the upper limit of traditional unloaders. The minimum capacity of 600tph is suitable for daily heavy-duty transfer in mining operations, while the maximum capacity of 1800tph can handle peak demand of concentrated bulk cargo arrival at ports. Equipped with a Siemens PLC frequency conversion control system, the capacity can be adjusted in real time according to the arrival density of trucks and material type. For example, when 100-ton dump trucks are concentrated for ore unloading, it can switch to the 1800tph full-load mode with one click, completing the unloading of 18 trucks per hour; during daily off-peak periods, it can be reduced to 600tph, which lowers energy consumption while minimizing no-load wear of the equipment, balancing efficiency and economy.
• Bearing High-Flow Transfer of Heavy Bulk Materials: The belt width is upgraded to 1800mm, adopting a composite structure of "double-layer polyester canvas core + 30mm-thick wear-resistant rubber". Its transverse tensile strength reaches 2500N/mm, capable of withstanding long-term impact from heavy materials such as ore and coal (maximum impact pressure ≤20kN). The belt surface is designed with diamond-shaped anti-slip patterns to prevent heavy materials from slipping during transfer, improving material transfer stability by 40% compared to ordinary belts. Meanwhile, the belt drive system is upgraded to dual SEW/FLENDER gear motors (total power 90kW), with a starting torque 50% higher than that of the single-motor design, completely solving the problem of belt jamming caused by high-flow material accumulation.
• Heavy-Duty Tracked Chassis: In response to the equipment's own weight (approximately 65 tons) and heavy-duty operation requirements, a heavy-duty tracked chassis design is adopted. The track width is increased to 800mm, the ground contact area reaches 12㎡, and the ground pressure is ≤55kPa. It can move freely on complex terrains such as muddy mining roads in mining areas and gravel yards in ports without the need for pre-paved hardened roads. The chassis frame is made of 40Cr forged steel, with key load-bearing parts thickened to 30mm. It has passed 100,000 heavy-duty rolling tests without deformation, ensuring the equipment maintains structural stability during 24-hour continuous operation.
• Customized Adaptability to Large Trucks: The total width of the hopper is custom-made to 6-8m, and the feeding height is only 1.5m, perfectly adapting to mainstream 100-ton dump trucks on the market (such as CAT 793F and VOLVO A60H) without the need to adjust the truck's unloading height. The hopper is equipped with an optimized grid structure, and the grid spacing can be customized according to material particle size (50-200mm optional), which not only filters large impurities to prevent belt jamming but also avoids fine material blockage. At the same time, it is equipped with a hydraulically driven ramp (slope 12.1%, i.e., 6.7deg), and the ramp surface is paved with anti-slip steel plates, allowing large trucks to move up and down smoothly and avoiding ramp slipping caused by rainy days or heavy vehicle rolling.

Structural Features

In view of the high capacity and heavy-duty characteristics of the ZRLD-TU1800 Mobile Truck Unloader, ZOOMRY has carried out specialized strengthening on the equipment structure. From the chassis to the transmission system, heavy-duty design standards are adopted to reduce the failure rate of the equipment during long-term heavy-duty operations:

• Load-Bearing Optimization of Heavy-Duty Tracked Chassis: The chassis longitudinal beams adopt a box-type structure design with built-in reinforcing ribs, increasing the load-bearing capacity by 60% compared to ordinary tracked chassis; the track links are made of high-manganese steel (Mn13), and the surface is quenched (hardness reaching HRC50-55), improving wear resistance by 3 times and extending the service life to more than 8 years. Meanwhile, the chassis is equipped with heavy-duty shock absorbers, which can buffer the impact vibration when large trucks unload, reducing damage to components such as belts and idlers and lowering the frequency of equipment maintenance.
• Strengthening of High-Flow Belt Transmission System: The belt rollers are made of cast steel (material ZG35CrMo) with a wall thickness of 25mm and a static balance accuracy of G4.0 class, capable of withstanding radial pressure during 1800tph material transfer (maximum pressure ≤30kN); the roller surface is covered with a diamond-shaped rubber layer (15mm thick) to increase friction with the belt and prevent belt slipping during high-flow material transfer. In addition, the belt tensioning system adopts a hydraulic automatic tensioning design, which can adjust the tension in real time according to the belt load to prevent belt deviation or material leakage caused by belt slack.
• Stability in Heavy-Duty Operations: The bottom of the ZOOMRY ZRLD-TU1800 Mobile Truck Unloader is equipped with 5 sets of heavy-duty hydraulic jacks (each with a load capacity of 30 tons), distributed in a "double-row symmetric" manner, covering the core load-bearing area of the equipment. During operation, the jacks can be synchronously lifted within 40 seconds to stably support the equipment on the ground, with the tracks completely free from load, avoiding the tilting of the machine body when two lanes are unloading simultaneously (each lane bears 50 tons). The jacks are equipped with pressure sensors and overload protection devices, which will automatically alarm when the load of a certain support point exceeds the limit, ensuring the safety of the equipment during heavy-duty operations.

Application Scenarios

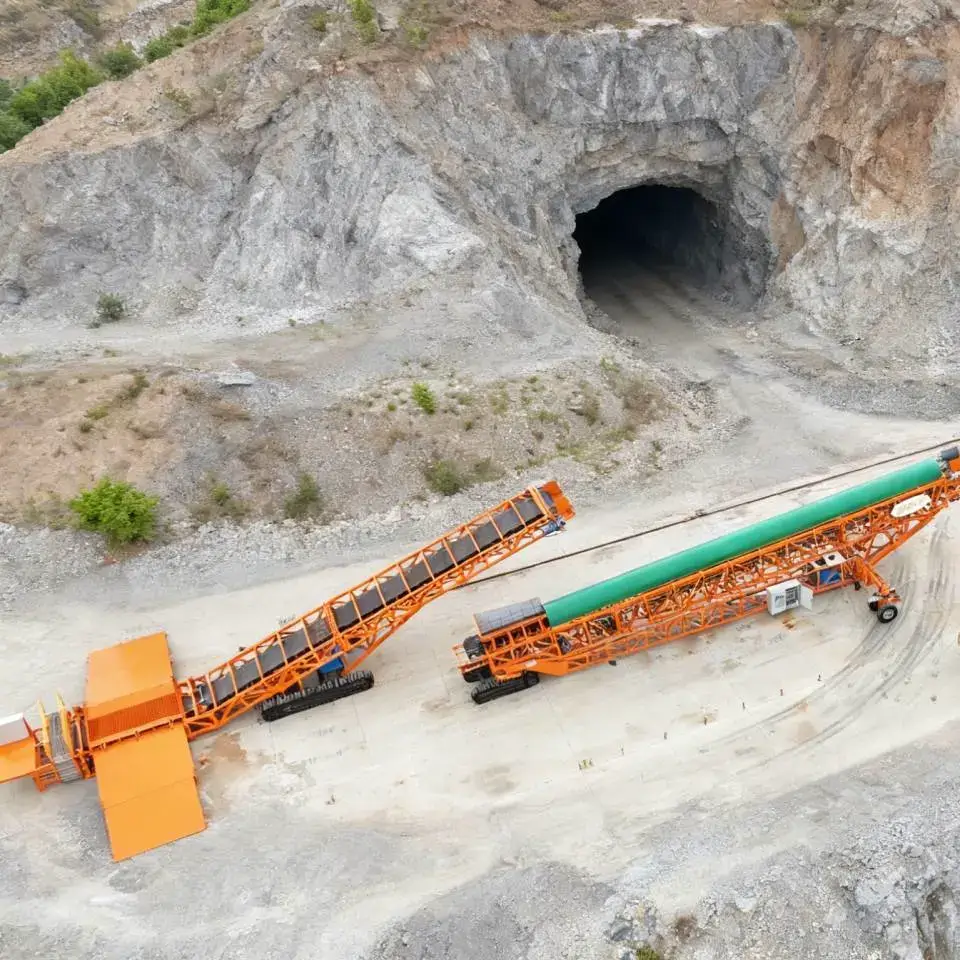

Heavy Ore Transfer in Large-Scale Mining

In large-scale mining scenarios such as large open-pit mines and underground mines, it is necessary to handle heavy ore transported by 100-ton dump trucks on a daily basis (a single ore block can weigh up to 50kg). Traditional unloaders often experience shutdown failures due to insufficient capacity and poor wear resistance, making it difficult to meet the 24-hour continuous production needs of the mining industry. The 1800mm-wide belt and wear-resistant structure design of the ZRLD-TU1800 can easily carry the transfer of heavy ore, and the 1800tph full-load mode can realize the seamless connection between "trucks and crushers". Through the collaborative operation of 2 units of equipment, it can handle the ore unloading task of 200 100-ton trucks per day, improving the unloading efficiency by 70% compared to traditional equipment. The monthly failure rate of the equipment is controlled within 1%, providing stable support for continuous production in the mining industry.

Concentrated Bulk Cargo Unloading at Ports

In port scenarios such as bulk cargo-specific ports and comprehensive hub ports, after the arrival of bulk cargo ships (such as Panamax bulk carriers with a deadweight of 60,000-80,000 tons), it is necessary to quickly transfer bulk materials such as coal and grain from trucks to yards or ship loaders. If the handling is not timely, it is easy to cause truck queuing and congestion, affecting port throughput. The high capacity and tracked flexibility of the ZRLD-TU1800 can perfectly adapt to this scenario: ports can flexibly adjust the capacity (600-1800tph) according to the arrival volume of bulk cargo, avoiding energy waste caused by "using a large machine for small tasks"; the tracked design can adjust the operation area at any time according to the yard location, without frequent truck movement, reducing port site occupation. In practical applications, after the introduction of this equipment, the bulk cargo unloading cycle can be shortened by 40%, effectively improving the port's bulk cargo handling capacity.

Reliable Guarantee from International Certifications

ZOOMRY fully understands customers' strict requirements for "safety, compliance, and durability" of heavy-duty equipment. From R&D to delivery, the ZRLD-TU1800 Mobile Truck Unloader complies with international standards and undergoes specialized testing for heavy-duty equipment throughout the process to ensure product quality:

• Triple International Certifications for Smooth Access to Major Global Markets: The equipment has obtained CE certification (EU Machinery Safety Directive), EAC certification (Customs Union Certification for Russia and CIS countries), and KCS certification (Korean Industrial Safety Certification). All electrical components (such as Schneider circuit breakers and Siemens PLCs) and hydraulic components (such as Parker hydraulic valves) comply with the corresponding certification standards, allowing direct entry into markets such as Europe, Central Asia, East Asia, and the Middle East. Customers do not need to go through additional compliance procedures, shortening the equipment import cycle.
• Specialized Heavy-Duty Testing Covering Full-Working-Condition Verification: ZOOMRY's Quality Testing Center has added "heavy-duty performance testing" items for the ZRLD-TU1800, including: 1800tph full-load continuous 72-hour operation test (simulating peak port operations), 50kg heavy ore impact test (simulating mining working conditions), and -30℃~50℃ extreme temperature adaptability test (covering different climate zones). Each piece of equipment must complete the above tests before leaving the factory, accompanied by a detailed test report, ensuring stable operation of the equipment under heavy-duty and extreme environments; at the same time, the core components of the equipment (such as tracks, belts, and hydraulic jacks) have passed fatigue life tests, with a service life commitment of no less than 5 years.
• Heavy-Duty Component Standards Exceeding National Standards: The core components supporting the equipment all adopt heavy-duty products independently produced by ZOOMRY. For example, the idlers use heavy-duty bearings (model 308) with a radial load capacity of 25kN, 50% higher than that of ordinary idlers; the idler runout is controlled within ≤0.3mm (China's GB standard is ≤0.5mm), ensuring belt stability during high-flow material transfer; the cleaning scrapers are made of polyurethane + metal composite material, with wear resistance improved by 2 times, which can effectively remove residual heavy materials and reduce belt wear.

Customized Customer Services

In view of the "heavy-duty and high-load" characteristics of the ZRLD-TU1800, ZOOMRY has established a specialized service system to solve customers' pain points in equipment installation, maintenance, and spare parts:

• Customized Solutions for Heavy-Duty Equipment: ZOOMRY has established a "Specialized Engineer Team for Heavy-Duty Equipment" (with proficiency in English, Russian, and Spanish), which can provide customized services according to customers' specific working conditions (such as large truck models, material density, and operating temperature). For customers in high-temperature mining areas, it optimizes the heat dissipation structure of the hydraulic system; for port customers, it widens the hopper to adapt to local 120-ton special trucks, ensuring perfect adaptation of the equipment to customers' scenarios. At the same time, it provides an integrated solution of "unloader - belt conveyor - stacker", reducing customers' coordination costs with multiple suppliers.
• Specialized Installation and Commissioning for Heavy-Duty Equipment: The installation of the ZRLD-TU1800 Mobile Truck Unloader requires the support of professional heavy-duty equipment engineers. ZOOMRY can respond to customers' needs within 72 hours and send engineers with more than 5 years of experience in heavy-duty unloader installation to the site within 10-15 working days (covering major global regions). During the installation process, engineers will focus on commissioning core parameters such as the load-bearing balance of the tracked chassis, belt tension, and hydraulic support synchronization; after the commissioning is completed, they will provide a 3-day specialized training for customer operators, covering operating specifications for heavy-duty operations and emergency fault handling (such as belt jamming and hydraulic system overload), ensuring that the customer team is proficient in the equipment operation skills.
• Heavy-Duty Spare Parts Reserve and Maintenance Guarantee: ZOOMRY has established heavy-duty spare parts warehouses around the world, storing core heavy-duty components of the ZRLD-TU1800 (such as large track links, 1800mm belts, heavy-duty hydraulic jacks, and cast steel rollers). Customers can achieve local delivery within 3-5 days, avoiding long-term shutdowns caused by the shortage of heavy-duty spare parts; during the warranty period, if there are quality problems with the core components of the equipment (such as tracks, hydraulic systems, and belt drive motors), ZOOMRY provides free spare parts and maintenance guidance; after the warranty period, customers can sign an "Annual Maintenance Agreement for Heavy-Duty Equipment", and engineers will conduct on-site inspections of the equipment's load-bearing structure, hydraulic system, and belt wear every quarter, extending the service life of the equipment to more than 8 years.

Why Choose ZOOMRY ZRLD-TU1800 Mobile Truck Unloader?

Facing competition from international brands, the ZOOMRY ZRLD-TU1800 Tracked 2-Lane Truck Unloader has become customers' first choice due to its "heavy-duty advantages, high cost performance, and localized services":

• Leading Heavy-Duty Performance: Compared with similar 2-lane unloaders (maximum capacity 1500tph), the 1800tph capacity of the ZRLD-TU1800 Mobile Truck Unloader is 20% higher, and the material leakage rate during 1800tph full-load operation is ≤0.3% (the average of international brands is 1.5%), which can reduce customers' material waste; the heavy-duty failure rate of the equipment is 15% lower than that of similar brands, making it more suitable for customers' needs for "continuous operation and low failure rate".
• Significant Cost Performance Advantage: While maintaining leading heavy-duty performance, the purchase cost of the ZRLD-TU1800 Mobile Truck Unloader is 18%-22% lower, and the price of heavy-duty spare parts is only 50%-60% of that of international brands. For example, the price of the 1800mm wear-resistant belt from ZOOMRY is 45% lower than that of international brands, which can help customers significantly reduce initial investment and later maintenance costs.
• Faster Service Response: In view of the characteristics of heavy-duty equipment such as "high maintenance difficulty and urgent spare parts demand", ZOOMRY's heavy-duty spare parts warehouses and specialized engineers can achieve a fast response of "spare parts delivery within 3 days + engineers on-site within 72 hours", which is more than 50% shorter than that of international brands (average spare parts delivery within 7 days + engineers on-site within 10 days), reducing customers' production loss caused by equipment failure.
