Hydraulic Truck Unloader

ZOOMRY's Hydraulic Truck Unloader is engineered for high-intensity, precision bulk material unloading scenarios. Utilizing full hydraulic drive technology, it overcomes power limitations of traditional mechanical transmissions, delivering exceptional processing capacities of 200-2200 tons/hour. Its core hydraulic system enables 360° omnidirectional operation, adapting to extreme conditions including mining overloads, steel plant high temperature environments, and chemical explosion-proof requirements. With material discharge height accuracy controlled within ±5 cm, operational stability improves by 50% while reducing labor input by 70%.

Core Technical Specifications

Model & Performance Matrix

Innovative Hydraulic System Design

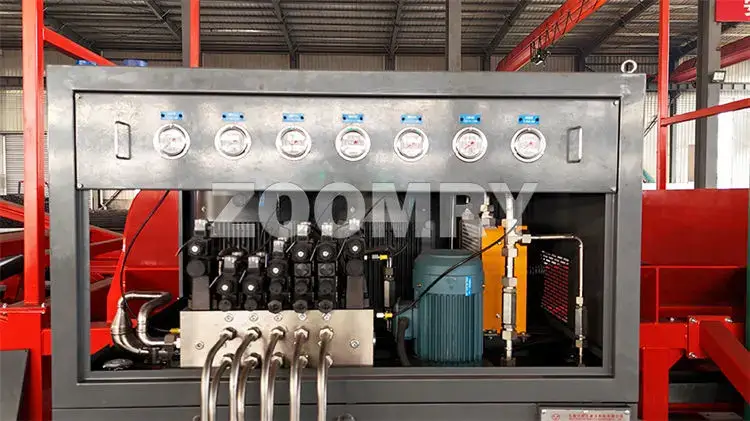

High-Pressure Power Unit

• Dual-pump confluence technology: Hydraulic Truck Unloader Integrates axial piston pumps + Eaton vane pumps, enabling stepless flow regulation (0-450 L/min) and peak pressure up to 45 MPa.
• Intelligent thermal management: Independent air cooling stabilizes oil temperature at 35-55°C, maintaining 95%+ hydraulic efficiency under extreme conditions.

Precision Actuators

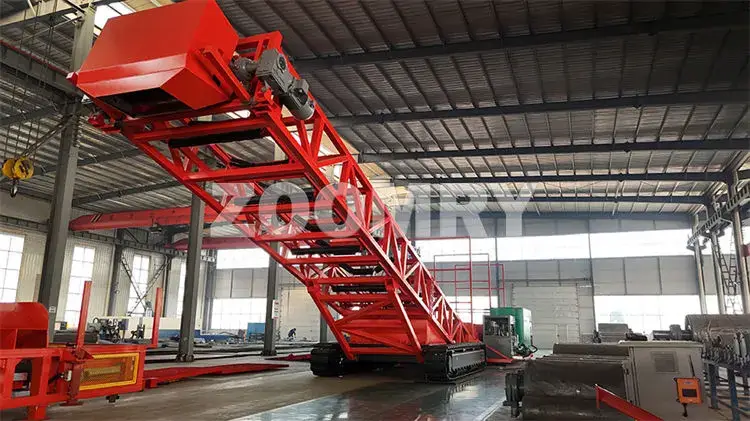

• Three-stage telescopic arm: Extends up to 18 meters with 0-75° lifting angle, positioning accuracy ±2° (closed-loop displacement sensor control).
• Heavy-duty slewing platform: 2.2-meter-diameter bearing, 1200 kN·m torque, powered by Hawe HPVD proportional valves for continuous 360° operation.

Safety & Efficiency Optimization

• Load-sensing control: Hydraulic Truck Unloader dynamically matches actuator pressure demands, cutting energy consumption by 40%.
• Emergency power unit: Accumulator backup ensures complete unloading cycles during power outages.

Structural Design & Scenario Adaptation

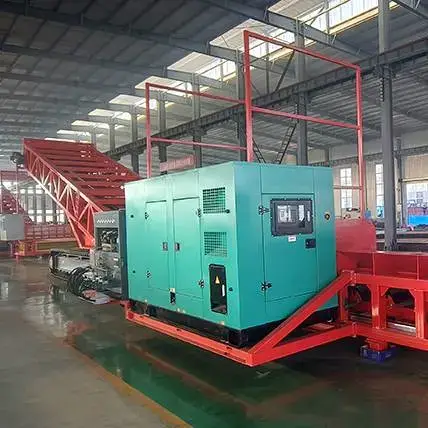

Modular Hydraulic Power Station

• Split-type pump station: 55-250 kW flexible configurations, maximum 50-meter separation from host unit to avoid high-temperature/dust zones.
• Explosion-proof design: Double-armored hydraulic lines, copper-alloy cylinder tubes (EN 13463 certified).

Adaptive Discharge Platform

• Heavy-duty lifting mechanism: Six Ø200mm hydraulic cylinders synchronize 180-ton lifting force with automatic ±3° tilt compensation.
• Intelligent guidance system: Laser-scanned truck container profiles guide hydraulic baffles to optimal material-receiving positions.

All-Terrain Mobility Solutions

• Wheeled hydraulic chassis: Danfoss hydrostatic drive axle enables 40 km/h road transit and 6-meter turning radius.
• Tracked hydraulic chassis: Closed-loop hydraulic travel system handles 25° slopes with <35 kPa ground pressure, boosting wetland mobility by 80%.

Key Advantages of Hydraulic Truck Unloader

Heavy-Duty Efficiency

• ≤5-minute single-cycle unloading, 60% faster than mechanical systems, with cylinders tested for 5 million cycles.
• Impact-absorbing arm design withstands 30-ton truck emergency braking inertia.

Millimeter-Level Precision

• Electro-hydraulic servo system achieves ±5 cm discharge height and ±10 mm belt positioning for precision warehousing.

Extreme Condition Resilience

• High-temperature version: Water-cooled oil radiator sustains operation at -40°C to +120°C.
• Explosion-proof version: IECEx/ATEX dual-certified for methane/coal dust environments.

Intelligent Maintenance Ecosystem

• Hydraulic health monitoring: Tracks pump/valve efficiency and oil contamination with >95% fault prediction accuracy.
• AR-assisted diagnostics: 3D leak detection via AR glasses triples repair efficiency.

Energy Conservation

• Load-sensing + variable frequency control reduces energy consumption by 45%, noise ≤78 dB(A).
• Hydraulic oil service life extended to 8000 hours (Hedcor filtration units).

Rapid Deployment

• Modular hydraulic stations assemble onsite within 8 hours; tracked models require no foundation work.

Industry-Specific Solutions & Benefits

ZOOMRY delivers three exclusive services: hydraulic system simulation, onsite pressure mapping, and lifetime oil analysis. Customized hydraulic components and control logic adapt to material properties (density, moisture, corrosiveness), ensuring stable performance throughout a 10-year lifecycle.
