How to Use 10 Hopper Feeders for Bulk Material Conveying in Complex Terrain

In the field of bulk material conveying, "complex terrain" has always been an industry pain point. Whether it is the steep slope drop in mountain mining, cross-water connection in ports and terminals, or disconnected scenarios involving tunnels and residential areas in infrastructure projects, traditional single or a small number of feeding equipment often faces problems such as low conveying efficiency, high material loss, and difficult equipment coordination. When enterprises need to handle large-scale bulk materials (e.g., 10,000-ton daily capacity mines, port loading operations), the scientific configuration and linkage of hopper feeders can solve the difficulty of conveying in complex terrain.

Pain Points of Bulk Material Conveying in Complex Terrain

Inadequate Terrain Adaptability

The biggest challenge of complex terrain is "spatial barriers": In mountain mining areas, stope and stockyard are often separated by steep slopes and canyons, making a single hopper feeder unable to cover long-distance conveying of more than 3 kilometers; In ports and terminals, there is a height difference between the unloading area and loading area, and traditional fixed hopper feeders cannot flexibly adjust the height; In scenarios involving tunnels or residential areas, equipment needs to balance "miniaturization" and "large flow", and a single type of equipment cannot achieve this balance. Although ZOOMRY's pipe belt conveyors can achieve 110° turns (far exceeding the 70° of ordinary belt conveyors), they need to be matched with multiple hopper feeders to realize "segmented connection" and avoid link interruption.

Poor Material Stability

During the conveying of bulk materials (such as coal, ore, aggregates) in complex terrain, three types of problems are likely to occur due to "uneven flow rate": First, material stratification, which leads to fluctuations in downstream processing quality; Second, dust emission and leakage, which do not comply with EU EN 15237 or China's GB environmental standards; Third, equipment wear, for example, excessive material impact in steep slope sections shortens the service life of idlers and rollers. ZOOMRY has statistically found that the material loss rate of traditional single hopper feeder solutions can reach 5%-8%, and the noise often exceeds 60dB, which is likely to cause complaints around residential areas. This is inconsistent with the adaptation requirements of ZOOMRY's silent idlers (noise ≤45dB, better than the 55dB required by GB standards), and also highlights the necessity of "buffer adjustment with multiple hopper feeders".

High Threshold for International Compliance

ZOOMRY's target customers cover the global market, and overseas projects need to comply with multiple standards such as CE (Europe), EAC (Russia), and CEMA (North America). For example, European projects require equipment to have an "emergency self-locking function", Russian projects need to withstand -30℃ low temperature, and North American projects need to comply with CEMA's idler precision standards (axial displacement < 0.5mm). In traditional solutions, if a single hopper feeder wants to meet multi-regional compliance, parameters need to be adjusted repeatedly, which not only costs a lot but also easily leads to the problem of "adapting to one place but not another". However, ZOOMRY's hopper feeders can be customized based on certification requirements (e.g., CE-certified models are equipped with overload protection, EAC-certified models have enhanced low-temperature performance), laying a foundation for the coordination of multiple units.

Design of Cascading Hopper Feeder Solution

Not all complex terrains require multiple hopper feeders. ZOOMRY's solution design needs to go through three pre-steps: "terrain survey - material analysis - compliance alignment" to ensure that the number and configuration of equipment accurately match the needs and avoid "blind accumulation".

Terrain Survey

ZOOMRY's technical team adopts a combination of "drone scanning + on-site surveying and mapping" to obtain three core types of data:

• Conveying link length and point distribution: If the link exceeds 5 kilometers and requires more than 3 transfer points (e.g., stope - tunnel - stockyard in mountain mining areas), 10 units of equipment are needed to achieve "segmented coverage"; If it is only short-distance connection in ports (1-2 kilometers), 6-8 units are sufficient.
• Terrain load and space constraints: Crawler-type hopper feeders are required for soft soil foundations (e.g., port tidal flats), and wheeled types can be selected for hardened roads; The space in tunnels is narrow, so hopper feeders need to be designed with "foldable hopper bodies". These parameters directly affect the conveying capacity of a single unit, thereby determining the total number of equipment.
• Height difference and inclination angle: When the maximum height difference exceeds 15 meters and the inclination angle > 18°, the number of hopper feeders needs to be increased to achieve "step-by-step buffering" and avoid excessive material impact. This is also the common design basis for using 10 units of equipment in steep slope projects.

Material and Compliance Analysis

• Material characteristics: When conveying high-hardness ores (e.g., granite), the hopper walls need to be thickened to 16mm, and idlers should be made of wear-resistant steel (ZOOMRY's steel idlers have a service life of over 50,000 hours); When conveying wet fly ash, anti-adhesion coatings and vibration devices need to be configured to avoid material blocking.
• Compliance standards: For projects exported to Europe, all 10 hopper feeders must pass CE certification and be equipped with emergency pull-cord switches and belt deviation switches (complying with CEMA safety specifications); For projects exported to Russia, they need to pass EAC certification and have enhanced low-temperature adaptability of the hydraulic system.

Layout, Linkage and Problem-Solving of Hopper Feeders

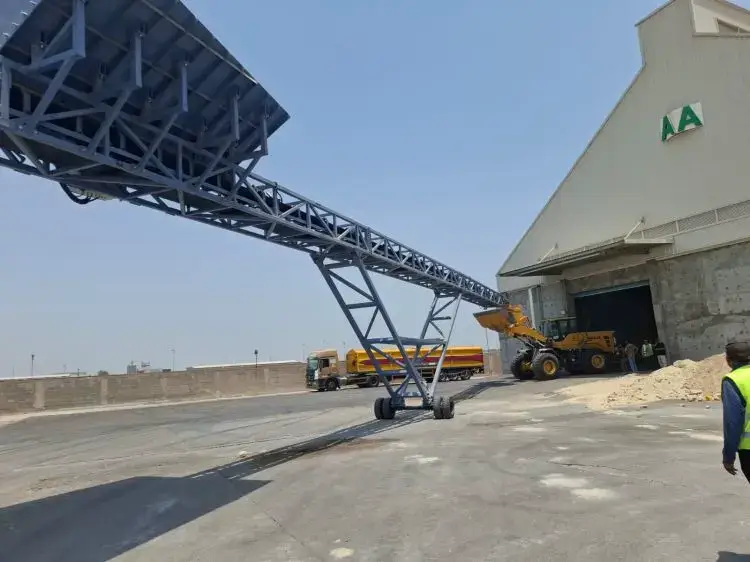

Group Layout

ZOOMRY usually divides 10 hopper feeders into "Front-end Feeding Group (3 units), Transfer Buffer Group (4 units), and Back-end Discharging Group (3 units)". The function of each group directly corresponds to the terrain pain points:

The advantage of this layout is that the 3 front-end units solve the problem of "uneven feeding", the 4 transfer units solve "terrain barriers", and the 3 back-end units solve "discharging adaptation", forming a closed-loop full link.

Linkage Control

The biggest risk of multiple equipment units is "asynchrony". If the front-end feeding is too fast and the back-end processing is not timely, it is easy to cause material blocking in the transfer section; If the front-end feeding is too slow, it will cause material interruption at the back-end. ZOOMRY solves this problem through the "PLC+HMI" control system, whose core functions include:

• Unified flow rate adjustment: 10 hopper feeders are connected to ZOOMRY's remote monitoring platform. Operators can view the material level and speed of each unit in real time through the touchscreen (HMI), and automatically match the flow rates of the "front-end - transfer - back-end" (e.g., when the front-end feeding volume is 500 TPH, the transfer section is adjusted to 480 TPH, and the back-end is maintained at 450 TPH) to avoid overload or material interruption.
• Emergency self-locking protection: If a hopper feeder experiences "motor overload" or "belt deviation", the system will trigger self-locking within 0.01 seconds, and simultaneously reduce the speed of upstream equipment and increase the efficiency of downstream equipment to prevent fault spread. This function complies with the safety requirements of European CE certification.
• Offline backup mode: To address the unstable network in remote areas (e.g., African mining areas), each hopper feeder retains manual control function to ensure partial operation even in case of power failure or network outage, avoiding full-link shutdown.

Supporting Equipment

The efficient operation of 10 hopper feeders requires in-depth adaptation to ZOOMRY's conveying equipment and core components to maximize the solution of complex terrain pain points:

• Conveying equipment adaptation: The front-end is connected to curved belt conveyors (inclination ≤18°), the transfer section is connected to pipe belt conveyors (sealed conveying to reduce dust), and the back-end is connected to radial stacking conveyors (ZR series, length 15-30m, height adjustable flexibly), forming a complete link of "feeding - conveying - stacking".
• Core component support: Idlers are ZOOMRY's silent type (noise ≤45dB, axial displacement < 0.4mm, better than GB standards) to ensure environmental compliance in tunnel and residential scenarios; Rollers are made of 40Cr forged material (when diameter ≥200mm), with shell ovality < 1.5mm to improve transmission stability; The discharge port of the feeder is equipped with polyurethane (PU) cleaning scrapers to avoid uneven conveying caused by material adhesion.
• Environmental protection supporting: The transfer section and back-end discharge port are equipped with ZOOMRY's non-powered dust collection chutes (no electricity required to reduce dust), and rain shields are added at open-air points to ensure compliance with mainstream global environmental standards.

Application Solution

Pre-Project Preparation

• Terrain analysis: The conveying link is 4.5 kilometers long, including 4 key points (stope, steep slope, tunnel, stockyard), and 3 transfer points are required for connection. Therefore, 10 units of equipment (grouped as 3+4+3) are determined.
• Material requirements: Limestone has high hardness (Mohs hardness 3-4), so hopper walls need to be thickened and wear-resistant idlers are required. Meanwhile, the loss rate needs to be controlled ≤2% (the downstream is cement production, which has high requirements for material uniformity).
• Compliance requirements: The products are exported to Europe, so they need to comply with CE certification (safety, noise, environmental protection) and CEMA standards (idler and roller precision).

Solution Implementation and Problem-Solving

• Resolution of steep slope pain points: 4 transfer hopper feeders adopt crawler chassis (ZOOMRY ZRLD series) to avoid subsidence on soft soil foundations; The hopper body is designed with "anti-slip baffles" to reduce material impact by 40%, and the idler service life is extended to over 50,000 hours.
• Resolution of tunnel pain points: 2 transfer hopper feeders adopt foldable hopper bodies, with width reduced from 3.5m to 2.8m to adapt to tunnel space; Silent idlers control noise at 42dB to avoid affecting surrounding villages.
• Achievement of efficiency and compliance standards: Through PLC linkage control, the daily average conveying capacity reaches 14,000 tons (16% higher than required); Noise, dust, and material loss all comply with CE and local standards, and the project successfully passes acceptance.

Long-Term Operation and Maintenance Guarantee

ZOOMRY provides "5-year warranty + quarterly inspections" for this project. Core components (idlers, rollers) can be replenished within 72 hours through the overseas spare parts warehouse (Southeast Asia Warehouse), and the equipment has been in operation for 18 months without major faults.

In summary, the core of "how to use 10 hopper feeders for bulk material conveying in complex terrain" is not simply explaining equipment operation, but presenting a complete logic from "pain point analysis to solution derivation, and then to implementation verification". First, through three preparations (terrain, material, compliance), the necessity of configuring 10 units of equipment is determined; Then, through group layout, linkage control, and supporting adaptation, complex terrain pain points are solved in a targeted manner; Finally, the feasibility and value of the solution are verified through practical cases.
