What Can Mobile Stackers Help Us Achieve?

Time:2025-05-19 16:47:05 Number of Clicks:

According to field data from global engineering consultancy Marshalling Group, enterprises adopting modular mobile stacking systems have achieved average improvements of 37% in yard space utilization, 28% reduction in operational costs, and material loss rates controlled below 0.5%. Mobile stackers specifically address challenges in mining, ports, power generation, and building materials industries, including inadequate site adaptability of fixed equipment, low efficiency of manual stacking, and excessive material transfer losses.

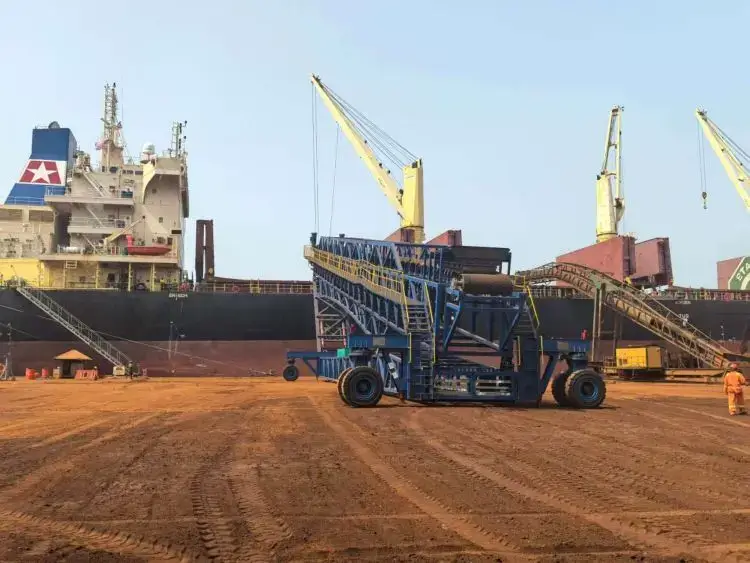

mobile stacking.webp


Components of Mobile Stackers

Travel Chassis System

Take Zoomry's ZR160SF model as an example: Its crawler chassis features an X-shaped steel frame structure with yield strength reaching 355MPa, equipped with dual-circuit hydraulic drive that maintains stable operation on 30° slopes. Eight overpressure tires combined with an auto-balancing system perfectly adapt to complex mining terrain.

Telescopic Boom System

The patented hexagonal telescopic rail structure enables boom extension speeds of 0.8m/s with ±5mm repeat positioning accuracy. A unique dual safety system (hydraulic winch + steel cable) ensures mechanical self-locking within 0.01 seconds during power outages.

Conveyor System

The 1400mm-wide EP800 belt, paired with variable frequency drive motors (22-422kW power range), achieves stepless speed adjustment (0.5-4m/s). Ceramic-coated pulleys in critical areas increase friction coefficient to 0.45, with wear resistance three times higher than conventional materials.

Power Module

The diesel-electric hybrid system delivers continuous 400kVA power, featuring intelligent power distribution that improves fuel efficiency by 22% over traditional models. The load-sensing hydraulic system maintains pressure fluctuations within ±0.2MPa.

Intelligent Control System

PLC-based automatic stacking algorithms support 3D modeling and path planning. The HMI interface integrates 18 functional modules including material flow monitoring and equipment health diagnostics, achieving 98% fault self-diagnosis accuracy.


Other Types of Mobile Stackers

Mobile Truck Unloaders

Mobile truck unloaders are integrated equipment combining unloading, conveying, and stacking functions. Featuring multi-angle adjustable platforms, they enable seamless transition from trucks to storage systems.

Key Features

  • Dual-mode unloading platform: 6° gentle slope for bagged materials, 12° steep slope for bulk material flow
  • Hydraulic quick-connect: 1.2m vertical range achieves precise truck alignment within 30 seconds
  • Spillage prevention: Retractable side shields with negative pressure dust suppression
  • Intelligent dispatch: License plate recognition + automatic weighing, handling 120 trucks/day

Applications

  • Coal-fired power plants: Enclosed coal yard transfer with dust concentration <5mg/m³
  • Chemical warehousing: Damage-free unloading of polypropylene granules with anti-static belts
  • Municipal waste transfer: Rapid unloading of compacted garbage trucks with deodorizing spray systems

Mobile Shiploaders

Mobile shiploaders revolutionize port operations by integrating traditional fixed shiploader functions into mobile platforms for multi-berth flexibility.

Technical Highlights

  • Multi-axis adjustment: -10° to +25° pitch, ±110° rotation, adapting to 3m tidal variations
  • Precision loading: Coriolis mass flow meters achieve 0.2% accuracy, preventing ship listing
  • Collision avoidance: Millimeter-wave radar + vision protection with 5m auto-stop
  • Rapid relocation: Hydraulic folding reduces transport width to 3.5m, setup time <2 hours

Operational Scenarios

  • Bulk export terminals: 2500t/h loading for Panamax-class coal/iron ore carriers
  • Grain export bases: Soft-landing systems limit grain drop height <1.5m
  • Fertilizer ports: Moisture-proof conveying with ±3% humidity control

Hopper Feeders

Hopper feeders serve as intelligent hubs in material handling systems, ensuring stable transfer between storage and processing equipment.

Technical Advantages

  • Anti-segregation: 3D grid + rotary spreader achieves 95% particle uniformity
  • Expandable hopper: Hydraulic side panels increase capacity from 5m³ to 30m³
  • Precision metering: ±0.1% load cells with microwave moisture detection
  • Blockage prevention: Vibrating baseplate + air cannon cleaners for sticky materials

Industry Applications

  • PV manufacturing: Cleanroom-grade silicon transfer (Class 1000)
  • Metallurgical batching: Iron ore/coke blending with <0.5% ratio error
  • Asphalt plants: Temperature-controlled aggregate transfer (±5℃)


Industry Case Studies

Case 1: Stacker Upgrade at Southeast Asian Global Hub Port

Facing 12m height limits that constrained storage capacity and recurring dust pollution alerts, this top-10 container port adopted Zoomry's ZR-SF series solution.

The 360° rotating crawler chassis enabled autonomous operation across 80,000m², while 32m telescopic booms increased effective height to 20m - equivalent to adding two warehouses. Dry mist suppression created 0.5m dust barriers with 92% capture efficiency, reducing ambient PM2.5 from 178μg/m³ to 56μg/m³. Smart scheduling boosted equipment utilization to 85%, cutting staffing from 12 to 5 per shift. The project delivered 50Mt annual throughput with $32M infrastructure savings.

Case 2: Mobile Shiploader Deployment at Middle Eastern Bulk Terminal

A Saudi Arabian coal terminal handling 120Mt/year implemented ZRSL shiploaders to overcome Panamax vessel loading inefficiencies.

Four-dimensional movement (±110° rotation, -10°/+25° pitch, 8m lift, 200m travel) allowed rapid berth switching. Laser positioning maintained ±0.3° accuracy in 10-level winds, keeping ship trim within 15cm. Loading times reduced from 28 to 19 hours at 3000t/h rates, with dust levels below 8mg/m³ meeting IMO standards. Annual savings reached $1.5M in demurrage fees.


Zoomry's Competitive Advantages

Core Transmission Innovation

Proprietary hydraulic winches extend cable life to 8,000 hours. Dynamic tension compensation limits belt misalignment to ±10mm.

Smart Control Breakthroughs

<2% material trajectory prediction error with 0.3s obstacle avoidance. Cloud-based monitoring covers global assets.

Modular Engineering

Standardized interfaces enable 70% faster assembly with 85% component interchangeability. On-site installation time reduced 60%.

Global Certification

12 international approvals including CE, EAC, KCS. Materials comply with ASTM A572 Gr50, EN 10025 standards.
